PIN Changer

I had to change the default PINs of over 200 SIM cards once. And such a situation could arise again. So I've built a PIN changer in which I just have to insert the card, wait a few seconds and it's done.

The Card Slots

SIM cards in their natural form factor aren't as fiddly to handle as they are in the form factors most people know, which is Mini SIM, Micro SIM and Nano SIM. Classical SIM cards are the same size as other smart cards. I found a card slot with an end switch on eBay. I like it when I find industry grade parts for cheap on eBay as part of some remaining stock. Additionally I've used a slide-in mini SIM slot and another, separate end switch from my parts collection in case I to change the PINs of smaller cards.

The Baseband Processor

Other parts that I've used is an Arduino Nano sized Arduino Nano nearly-clone and an A6 modem module. There are many similar modem modules designed around different but similar ICs. Many of them are cheap and widely used for DIY IoT projects. So example code for the Arduino and other help can be easily found on the web. I don't know why I went with a module with an A6. But it works fine and there are an Arduino library for it as well as cheap modem modules with it available.

(tba:voltage supply)

The Controller

Yes, Arduino may be kind of the noob go-to board and could look up how to use microcontrollers on their own finally and even if I don't want to I could finally start to use ESP32s like everybody else. But I know Arduinos and by now I'm familiar with it and it works, so, whatever. Arduino Nano is kind of my go-to form factor now because they have integraded USB, are Uno compatible and small. Unless I need more or something very specific I use Arduino Nano almost-clones with USB-C port.

The Code

The code is a real mess. It had been a long time since I had written any even halfway serious C. It may have been the first time, actually. The sketch surely is very easily improved by somebody who knows what they are doing. I intended to improve it myself. But the project is currently abandoned and The code is doing what it should in a way I initially had in mind as the goal. But I'll leave the mess of the comments in for the case that somebody wants to make out what I was thinking.


// Funktionen umschreiben: Beim Empfangen wird erwartet: 1. der AT-Command zurück, 2. eine Antwort, 3. OK oder ein ERROR.
//                         Daher sollte abgefragt werden, bis entweder OK oder ERROR kam oder 20/50/9001(?) Abfragen lang weder OK noch ERROR an kam.
//                         Die Antwort in Variable speichern? Naja, String zurückgeben halt.
//                         Antworten, die mit "^" anfangen brauchen nicht gehandlet zu werden, da keine Kommandos, die mit AT^ beginnen gesendet werden.


#include

SoftwareSerial A6MODULE(6,7);
int intled = 13; // Internal LED
int successled = 8; // Green LED
int failled = 9; // Red LED
int wrongpinled = 10; // Orange LED

boolean debug=true;

//String commands[5] = { "AT", "AT+CPINC2", "AT+CPIN?", "AT+CLCK=\"SC\",2", "AT+CPIN=\"3010\"" };
//int command = 0;

const byte maxmsglength = 32;
char received[maxmsglength];
boolean newData = false;
String response = "";

int i=0;

/*
To check/do:
1  AT: OK?
2  is PUK required - abort
3  are less than 3 PIN attempts left? - abort AT^CPINC=?
4  is PIN disabled
       5  enable it: 0000
6  is PIN enabled
       7  unlock
8  is card unlocked
       9  change PIN: 1996
              was PIN wrong - report and leave it
*/


void setup() {
  pinMode(intled, OUTPUT);
  pinMode(successled, OUTPUT);
  pinMode(failled, OUTPUT);
  pinMode(wrongpinled, OUTPUT);
  // All LEDs turn on at the beginning and stay on during the wait period at the beginning, then turn off before communication with the A6 module starts.
  digitalWrite(intled, HIGH);
  digitalWrite(successled, HIGH);
  digitalWrite(failled, HIGH);
  digitalWrite(wrongpinled, HIGH);
  Serial.begin(9600);
  delay(500);
  digitalWrite(intled, LOW);
  digitalWrite(successled, LOW);
  digitalWrite(failled, LOW);
  digitalWrite(wrongpinled, LOW);
  A6MODULE.begin(9600);
  delay(500);
  digitalWrite(intled, LOW);
}

void loop() {
  sendtoa6("AT");
  if(getfroma6("OK")) {
//    sendtoa6("AT+CPIN?");
//    if(getfroma6("+CPIN:SIM PUK")) { fail; }         // If the required password is PUK, abort.
//    sendtoa6("AT+CPIN?");
//    if(getfroma6("+CPIN:SIM PIN2")) { fail; }        // If the required password is PIN2, abort.
//    sendtoa6("AT+CPIN?");
//    if(getfroma6("+CPIN:SIM PUK2")) { fail; }        // If the required password is PUK2, abort.

// WAIT FOR SWITCH RELEASE FIRST
    sendtoa6("AT+CPIN?");
    getfroma6("+CPIN:SIM PIN");                      // The last non-empty response will be stored in the global response variable. Problem with this: If the A6 module sends an unsolicitated message before the response to the CPIN command, nothing gets done and the card needs to be re-inserted again.
    if(strcmp(response, "OK") == 0) {                // If already no PIN is required

//      sendtoa6("AT+CLCK=\"SC\",2"); // Ist PIN-Abfrage eingeschaltet? Oder ist es "SC"?
//      if(getfroma6(???)) { PIN-Abfrage einschalten mit 0000; }

      // ENABLE PIN HERE
      d("I don't know how to enable the PIN.");

    }
    if(response = "+CPIN:SIM PIN") {                 // If the required password is PIN, continue.
      sendtoa6("AT^CPINC=?");
      if(getfroma6("^CPINC: 3")) {                   // If not exactly 3 attempts are left, abort. (should be larger than or equal to 3, shouldn't it?)
        sendtoa6("AT+CPIN=\"0000\"");                // Freischalten mit 0000
        delay(50);
        if(!getfroma6("OK")) { fail; }               // If that was not the right password, abort.
        sendtoa6("AT+CPWD=\"SC\",\"0000\",\"1996\"");// PIN ändern
        delay(500);
        if(getfroma6("OK")) { Serial.println("Looking good."); }

//      sendtoa6("AT+CMGD=0,4"); // Should delete all SMS
//      if(getfroma6(???)) { ; }
        d("I don't know how to delete SMS.");

        sendtoa6("AT+CPIN?");
        if(getfroma6("+CPIN:READY")) {

          // TURN OFF A& MODULE FOR SAFE CARD REMOVAL

          digitalWrite(successled, HIGH);
        }
      } else {                                         // If not exactly 3 times left
        fail;
      }
      delay(1000);
    }
  }
}

void fail() {
  digitalWrite(failled, HIGH);               // Turn red fail LED on and ...
  d("Something failed! Ending programme.");
  while(1);                                  // ... don't do anything anymore.
}

void wrongpin() {
  digitalWrite(wrongpinled, HIGH);           // Turn yellow LED on and ...
  d("Wrong PIN! Ending programme.");
  while(1);                                  // ... don't do anything anymore.
}

//boolean getfroma6(char str[32], char str1[32], char str1[32], char str1[32], char str1[32], char str1[32]) { // Returns true if the passed (expected) message was received, false if anything else was received.
boolean getfroma6(char str[32]) { // Returns true if the passed (expected) message was received, false if anything else was received.
  boolean asexpected = false;
    for (i = 1; i < 9; ++i) {
    receivelinefroma6();
//    d("d1 "+response);

    if(received[0] == '\0') {                            // If the received message is empty
      continue;
    } else {
      response = received;
    }
    if(strstr(received, "ERROR") != NULL) {              // If the received message contains "ERROR"
      d("Received an error: "+response);
      fail;
    }
    if(received[0] == '+') {                             // If the received message starts with a "+" sign
      d("Reseived response: "+response);
    } else {
      if(strstr(received, "OK") != NULL) {               // If the received message is "OK"
        d("Received OK.");
        asexpected = true;                               // Also treat OK like the expected message. No unexpected OK should ever be sent from the A6 module. So this is fine. No, it is, really.
//        if(asexpected) { return true; }
      } else {
        if(strncmp(received,"AT",2) == 0) {              // If the received message starts with "AT"
          d("Received AT: "+response);
        } else {                                         // For any other received message
          d("Received: "+response);
        }
      }
    }
    newData = false;
    if(strstr(received, str) != NULL) {
      d("Received expected message: "+response);
      asexpected = true;
    }
  }
  if(asexpected) { return true; }
  return false;
}


//void handleresponse() {
//  response = received;
//  if(received[0] == '+') {
//    d("               Response: "+response);
//  } else {
//    if(strstr(received, "OK") != NULL) {
//      d("               It's okay.");
//    } else {
//      if(strncmp(received,"AT",2) == 0) {
//        d("               I've sent: "+response);
//      }
//    }
//  }
//  newData = false;
//}



void receivelinefroma6() {
  delay(80);
  static byte counter = 0;
  char rc;

  received[0] = '\0';

  while (A6MODULE.available() > 0 && newData == false) {
    rc = A6MODULE.read();

    if (rc != '\n') {
      received[counter] = rc;
      counter++;
      if (counter >= maxmsglength) {
          counter = maxmsglength - 1;
      }
    }
    else {
      received[counter] = '\0'; // terminate the string
      counter = 0;
      newData = true;
    }
  }
}

void sendtoa6(String command) {
//  Serial.println(command);
  A6MODULE.println(command);
  d("Sent: "+command);
}

void d(String line) {
  if (debug == true) { Serial.println(line); }
}

(tba:connections,assembly,photos?)

Comment via email

USB/Serial PWM Fan Controller Using an Arduino

I wanted to be able to control the speed of the fans in my big NAS, Fred, individually. Even though the mainboard in use has five PWM fan connectors, the chipset can only control the speed of all fans together. There are probably good fan controllers commercially available that solve this problem better than I did. But they seemed overpriced and it seemed like a fun learning project for me.

The fan controller that I made uses an Arduino Nano clone that listens to it's serial port, waiting for a command to change the speed of a fan. When a command is recognised the continuous PWM signal for that fan is changed accordingly. It's possible to control up to six fans this way with an Arduino Nano. I'm only using three though since I only have three fan groups that need to be controlled separately.

The Arduino sketch/C code for the Arduino Nano that I used is as follows.




//fan speed sensor wire attached to digital pin 2 with a 10kohm pullup resistor
//fan PWM control wire attached directly to digital pin 9

#include <PWM.h> //include PWM library http://forum.arduino.cc/index.php?topic=117425.0

volatile int half_revolutions1; //allow half_revolutioins to be accesed in intterupt
volatile int half_revolutions2; //allow half_revolutioins to be accesed in intterupt
int rpm1; //set rpm as an integer
int rpm2; //set rpm as an integer
int pwm=255;
const byte numChars = 5;
char receivedChars[numChars];

boolean newData = false;

void setup()
{
  InitTimersSafe(); //not sure what this is for, but I think i need it for PWM control?
  bool success = SetPinFrequencySafe(9, 25000); //set frequency to 25kHz
  pwmWrite(9, 51); // 51=20% duty cycle, 255=100% duty cycle

  pinMode(5, OUTPUT);
  pinMode(6, OUTPUT);
  analogWrite(5, 170);
  analogWrite(6, 255);
  pinMode(2,INPUT_PULLUP); //set RPM pin to digital input
  pinMode(3,INPUT_PULLUP); //set RPM pin to digital input
  half_revolutions1 = 0;
  rpm1 = 0;
  half_revolutions2 = 0;
  rpm2 = 0;

  Serial.begin(9600);
}



void loop()
{
  sei(); //enable intterupts
  attachInterrupt(0, fan_rpm1, RISING); //record pulses as they rise
  delay(1000);
  detachInterrupt(0);
  attachInterrupt(1, fan_rpm2, RISING); //record pulses as they rise
  delay(1000);
  detachInterrupt(1);
  cli(); //disable intterupts

  rpm1 = (half_revolutions1/2)*60;

  Serial.print("1");
  Serial.println(rpm1);

  rpm2 = (half_revolutions2/2)*60;

  Serial.print("2");
  Serial.println(rpm2);

  rpm1 = 0;
  half_revolutions1 = 0;

  rpm2 = 0;
  half_revolutions2 = 0;

  pwm = 255;
  recvWithStartEndMarkers();
  processCommand();
}

void fan_rpm1()
{
  ++half_revolutions1; //increment before returning value
}


void fan_rpm2()
{
  ++half_revolutions2; //increment before returning value
}


void recvWithStartEndMarkers() {
    static boolean recvInProgress = false;
    static byte ndx = 0;
    char startMarker = 's';
    char endMarker = '\n';
    char rc;

    while (Serial.available() > 0 && newData == false) {
        rc = Serial.read();

        if (recvInProgress == true) {
            if (rc != endMarker) {
                receivedChars[ndx] = rc;
                ndx++;
                if (ndx >= numChars) {
                    ndx = numChars - 1;
                }
            }
            else {
                receivedChars[ndx] = '\0'; // terminate the string
                recvInProgress = false;
                ndx = 0;
                newData = true;
            }
        }

        else if (rc == startMarker) {
            recvInProgress = true;
        }
    }
}

void processCommand() {
    if (newData == true) {
        Serial.print("s");
        Serial.println(receivedChars);
        switch (receivedChars[0])
        {
            case '1':
                receivedChars[0] = '0';
                sscanf(receivedChars, "%d", &pwm);
                analogWrite(5, pwm);
                break;
            case '2':
                receivedChars[0] = '0';
                sscanf(receivedChars, "%d", &pwm);
                analogWrite(6, pwm);
                break;
            case '3':
                receivedChars[0] = '0';
                sscanf(receivedChars, "%d", &pwm);

                break;
//            default:
//                Serial.println("I don't know what that means.");
        }
        newData = false;
    }
}

Well, how should I put it? It works, usually.

(tbc?)

(tba:photos)

Comment via email

USB Volume Control Knob

Volume control used to be a lot more responsive, quick and simple when the used potentiometers (analogue knobs or wheels). Just reach to the knob and the volume is at 0 or 100% almost instantly. No key combinations, no deactivated function keys, no switching tabs, no delay (!), no pressing the same botton multiple times or holding it down. I miss that.

(tba:content)

Comment via email

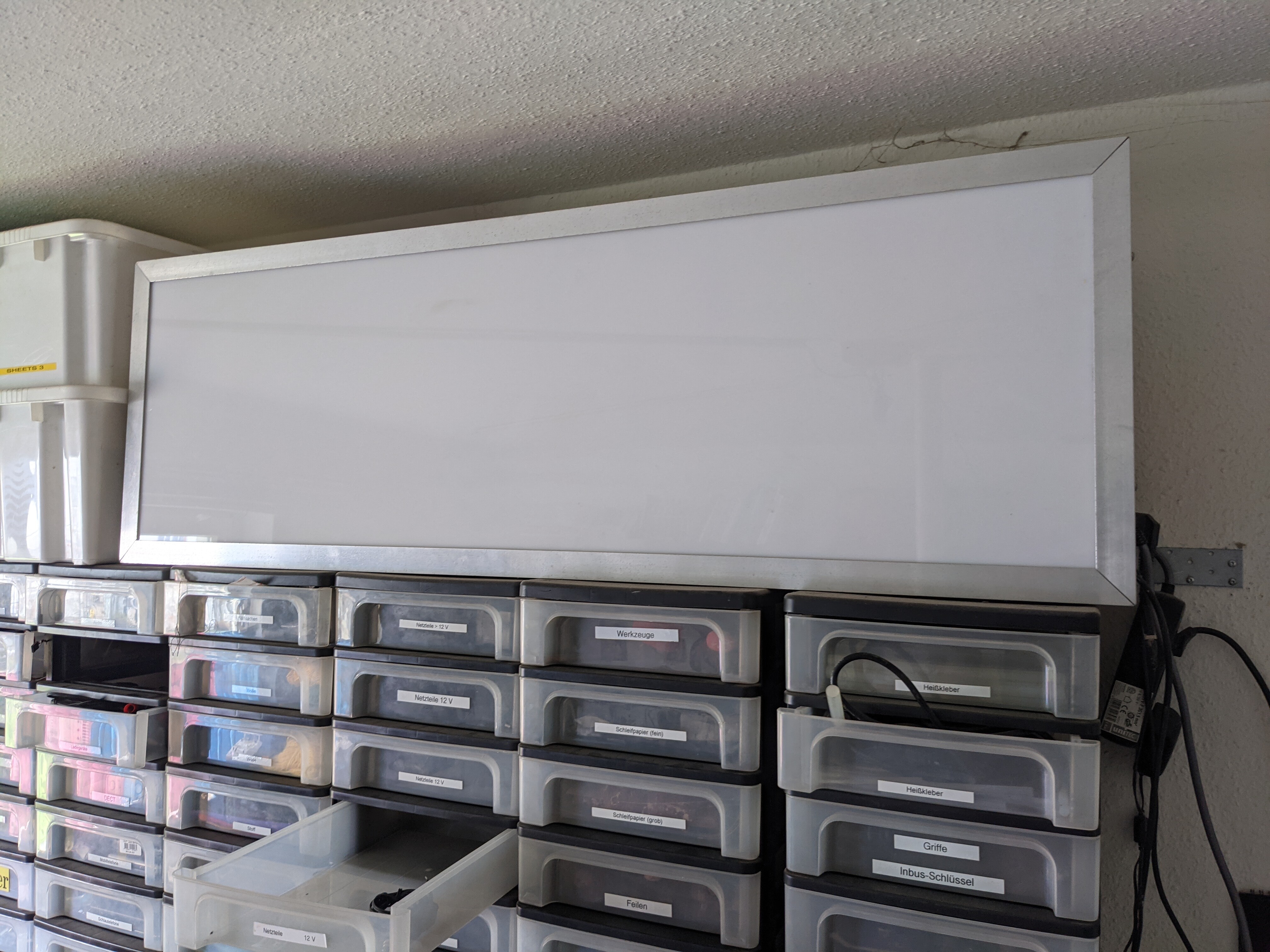

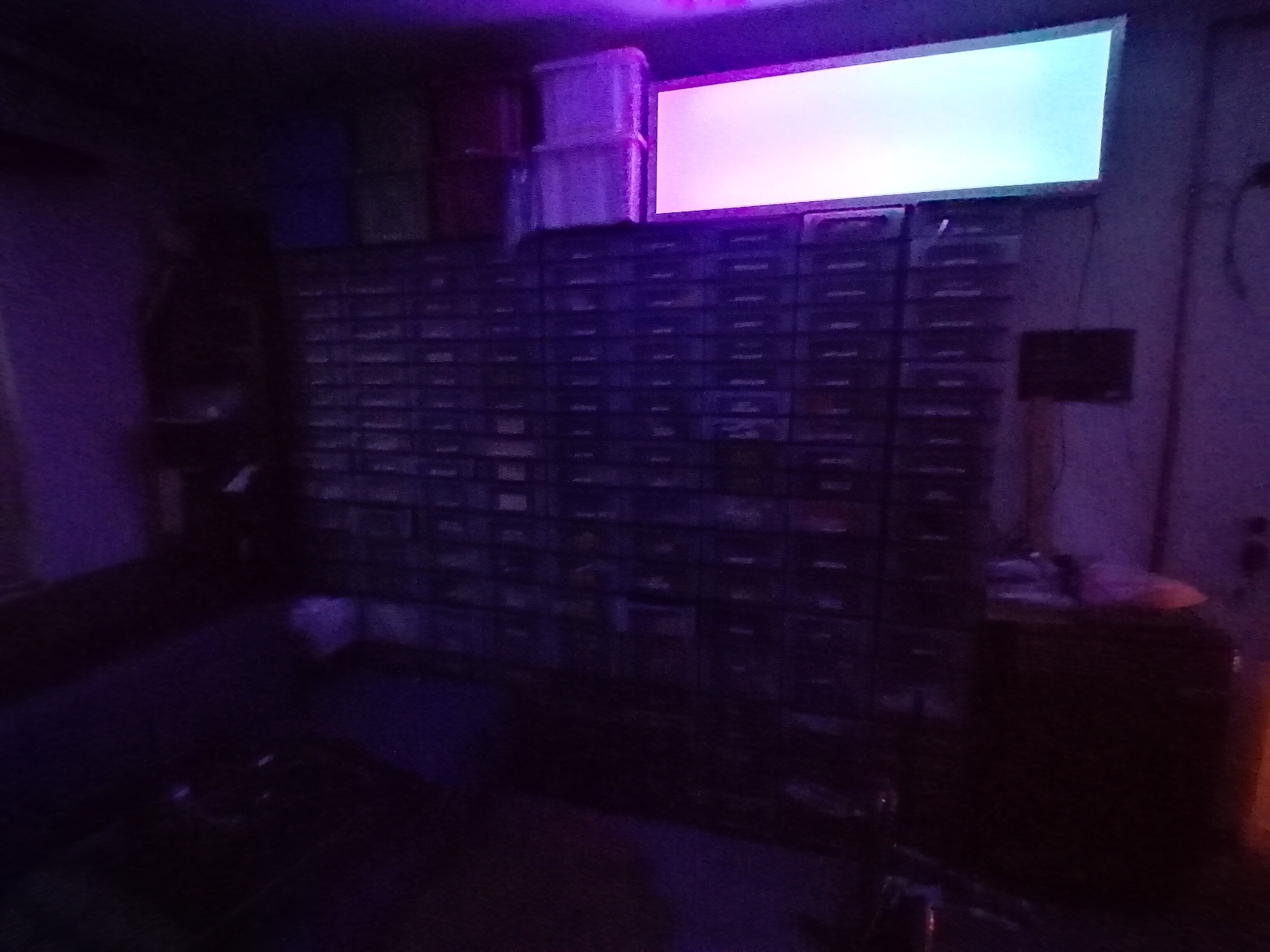

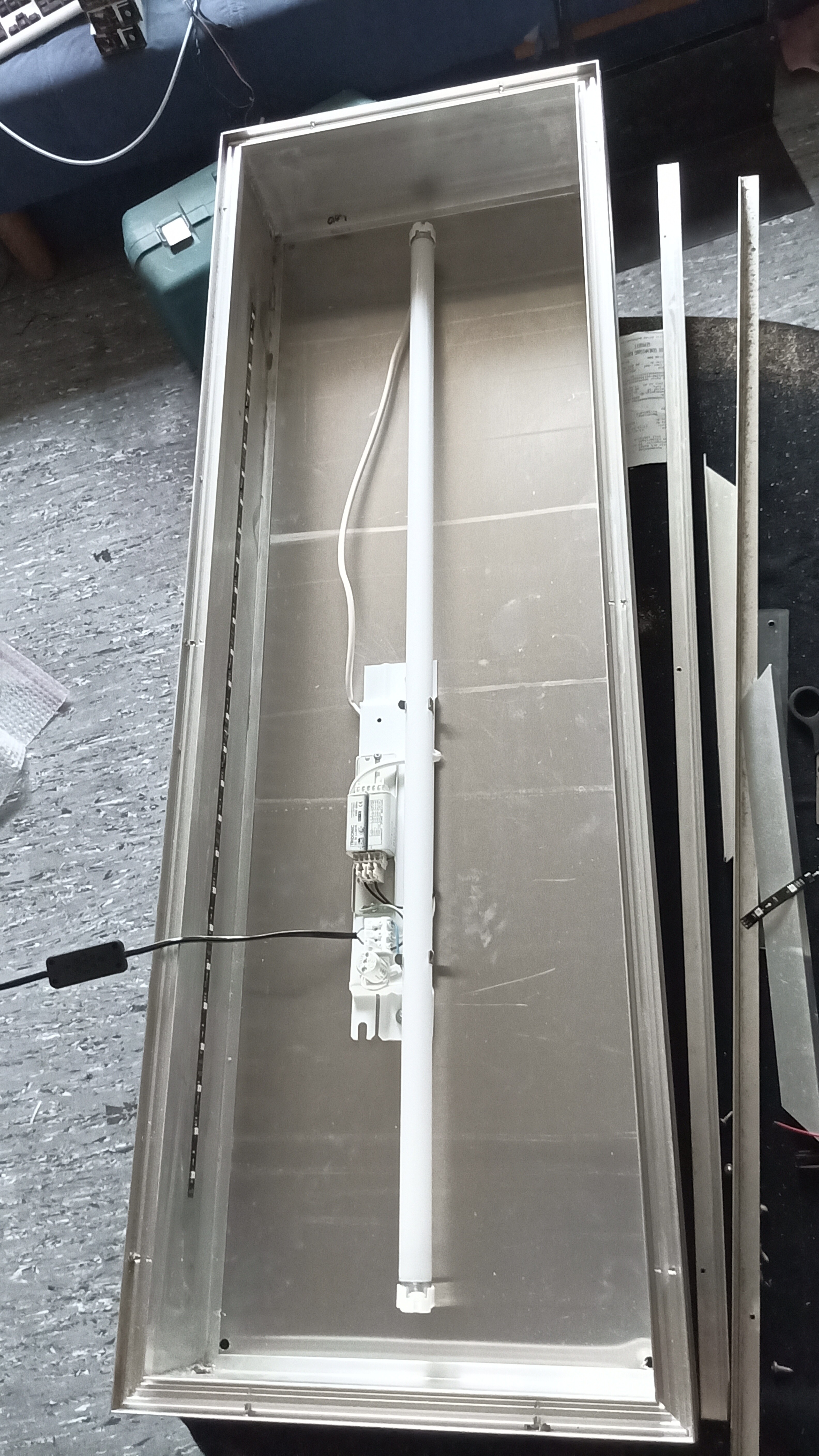

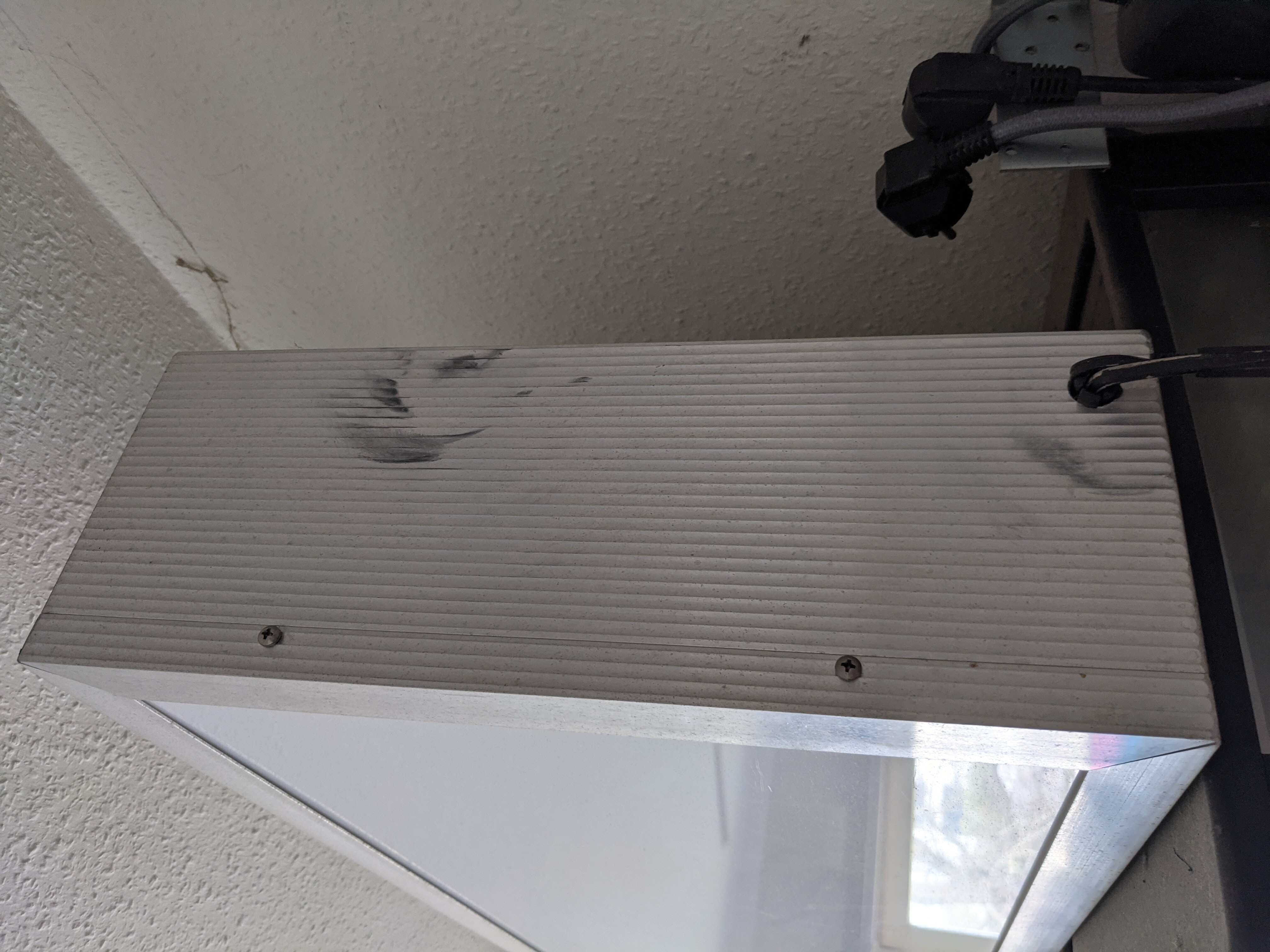

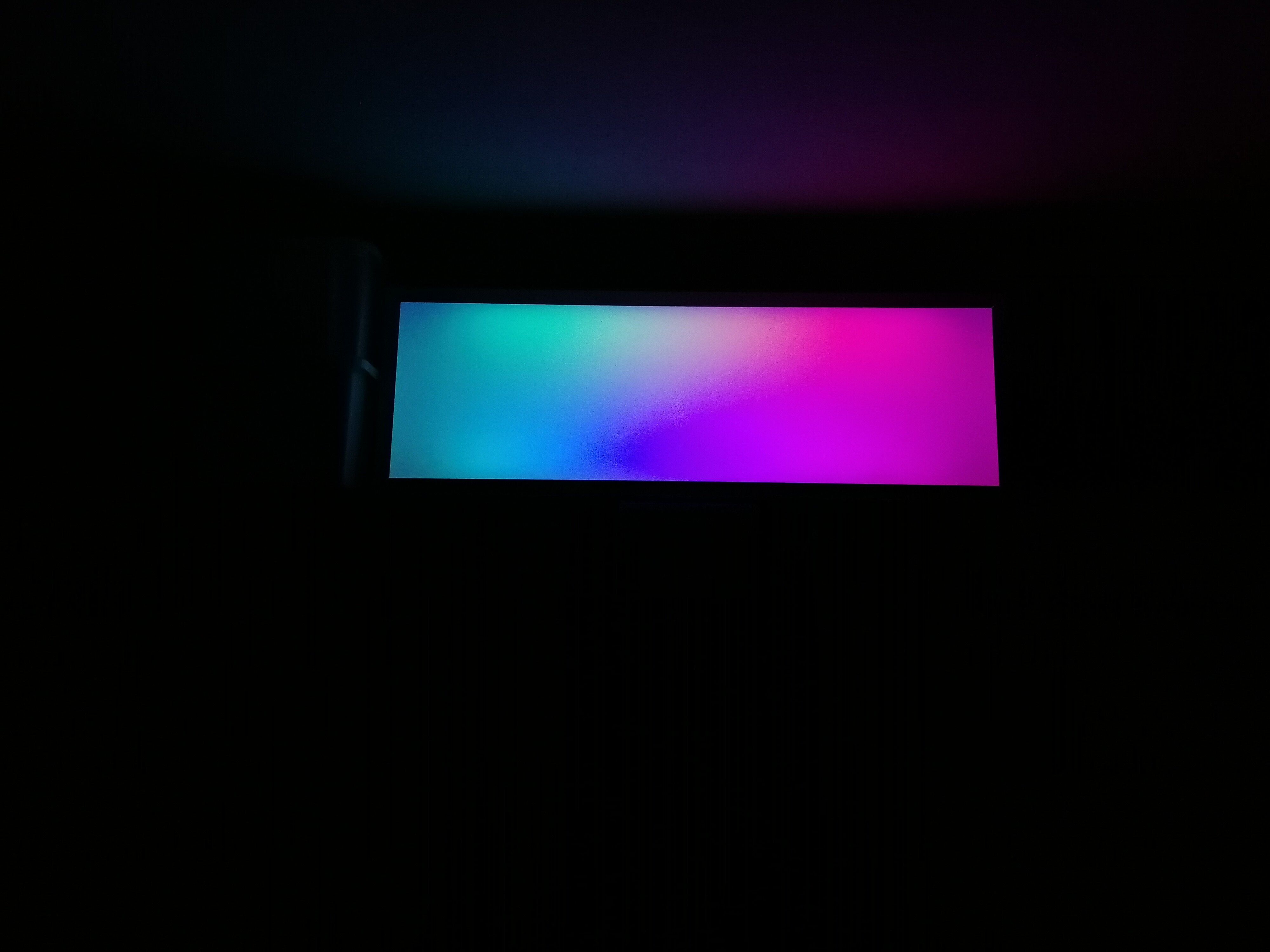

"RGB LEDed" Shop Sign

Found this old shop sign on ebay Kleinanzeigen. Idk, I just wanted to have it. Picket it up for 10 € since it wasn't far from me. Put some RGB LEDs and an Arduino inside, used some sample RGB LED sketch, Robert is your uncle. (tbc)

File Attachments (5 files)
