SBWG 0.11.1

I'm glad to have this version done and published. Even though it has new features compared to the last published version, I've used it enough to feel relatively comfortable saying it is also more stable and has fewer bugs than the last version. There are known bugs still left. But those aren't new.

Caching options and settings are slowly getting a bit elaborate, but also close to what I imagined them being able to do. There are new cachegroups and parts of entries can now be chosed as individual cachegroups, giving the user more control over what is cached and what caches are used. The lifetime of caches can now be set to make sure that no matter how the caching options are used, no outdated content, tags, attachments, etc. will stay on the web site for too long because cache files have been forgotten to be purges. The cache lifetime can be chosen from 1 second to unfinite. The directory used for persistant caches can now be chosen via command line option. I think the caching options are now in a state in which they can seriously be used reliably. Changes to existing cachegroups, like in previous versions, will probably not be made anymore. Just more cachegroups will be added.

The README file has grown a lot. Not only from new features and options. It's now also more complete. A lot of bugs have been fixed. And some general little code quality improvements took place. The stylesheets of the example web site have been improved a bit.

The messaging and logging system has been completely rewritten. It's not really an important part of the script and strictly doesn't matter for its functionality at all. But I decided to have a messaging system and a logging option that doesn't rely on shell redirects. So I did want to redo it properly. Different message types can now be redirected using file descriptors. The option parser has also been party re-written. It's approaching a state in which it's close to what I think personally a complete option parser for Bash should be like.

Alternate styles can now be defined in a web site's settings file. That way alternate style sheets will be offered to the web browser. If the browser supports alternate style sheets, the visitor can select from them to view the page in a different style. There is now an option to change the tagstyle, enabling a web site to have tags of the same type grouped for a more readable look of the entries' headers. Tags now show in parenthesis the number of entries that carry that tag. The number of file attachments is also displayed below entries.

The options for generating a single entry, page or gallery that is not located in the input directory/isn't actually part of the web site can now be used. They were very buggy or nonexistant before. Entries (and other items) with duplicate names are handled in defined ways now. Text files can now be used as file attachments to entries. But if the script determines one to look like a SBWG source file, it is omitted/not displayed/not linked to.

There are still big plans for future versions. Small and big features as well as a complete re-thinking of how the input directory is structured. Nicer looking web sites, more flexible command line options, more options for speeding up the script in cases where a complete website is updated/re-built. A pause like the one before this release will probably occur more often in the future.

Comment via email

Fred - Part 3 - Power Supplies

This entry is a reply to or continuation of the entry 'Fred - Part 2 - The Case Lid And Cooling'.

After getting rid of the fan wall, the power supply was the main source of noise. The original PSU was a 3U redundant (2+1) server power supply. Noise does not matter with machines like that. I wanted to be able to have it running in my living room though, so the noise had to drop a fucking lot. Seriously, that's said so many times for people who don't work with servers like this. But people are still surprised when they hear a server fan for the first time. One of original 60 mm fans in the back is louder than my vaccum cleaner. And there were two of those, four 80 mm fans and five 40 mm fans. Three of the latter in the power supplies. Because I have no means to control the fans in software and don't need all the power the power supply can supply, I tried how much I can lower the noise by adding resistors in series to the fans. That did reduce noise a lot. But not only aren't these fans optimated for quiet operation, they are 40 mm fans. They will nver be quiet enough.

So I looked online for a power supply that

  1. fits in the case (it's not completely an ATX case)
  2. can supply enough current for everything and
  3. is trustworthy/doesn't appear to be too cheaply built

I found a Newton Power Model NPS-300AB B, which doesn't meat points 2 and 3 but fits so perfectly into the case that it was a weird feeling to accept that it is mostly coincidence. I got it for a couple of euros on ebay. Most sellers seem to think it's some piece of premium equipment because it's used in some Fujitsu servers or something. But it's really just a cheap ATX power supply in a non-standard case. But because of that non-standard case fitted so well into my non-standard server case, I got it anyway. I only had to drill the screw holes and that was it. It's hardly enough for 14 HDDs and the internet says it's really cheap and not trustworthy. But I went with it anyway in order to pay tribute to r/thingsfittinginthings.

Not a year later the PSU died. Probably overstressed it for too long. I replaced it with a better SFX unit. I had a nice and thick plate of stainless steel lying around, from which I cut an adapter plate.

I'll attach some photos below. Maybe I'll continue this series of entries on Fred some other day with experiences of dust and heat and such over time.

File Attachments (5 files)

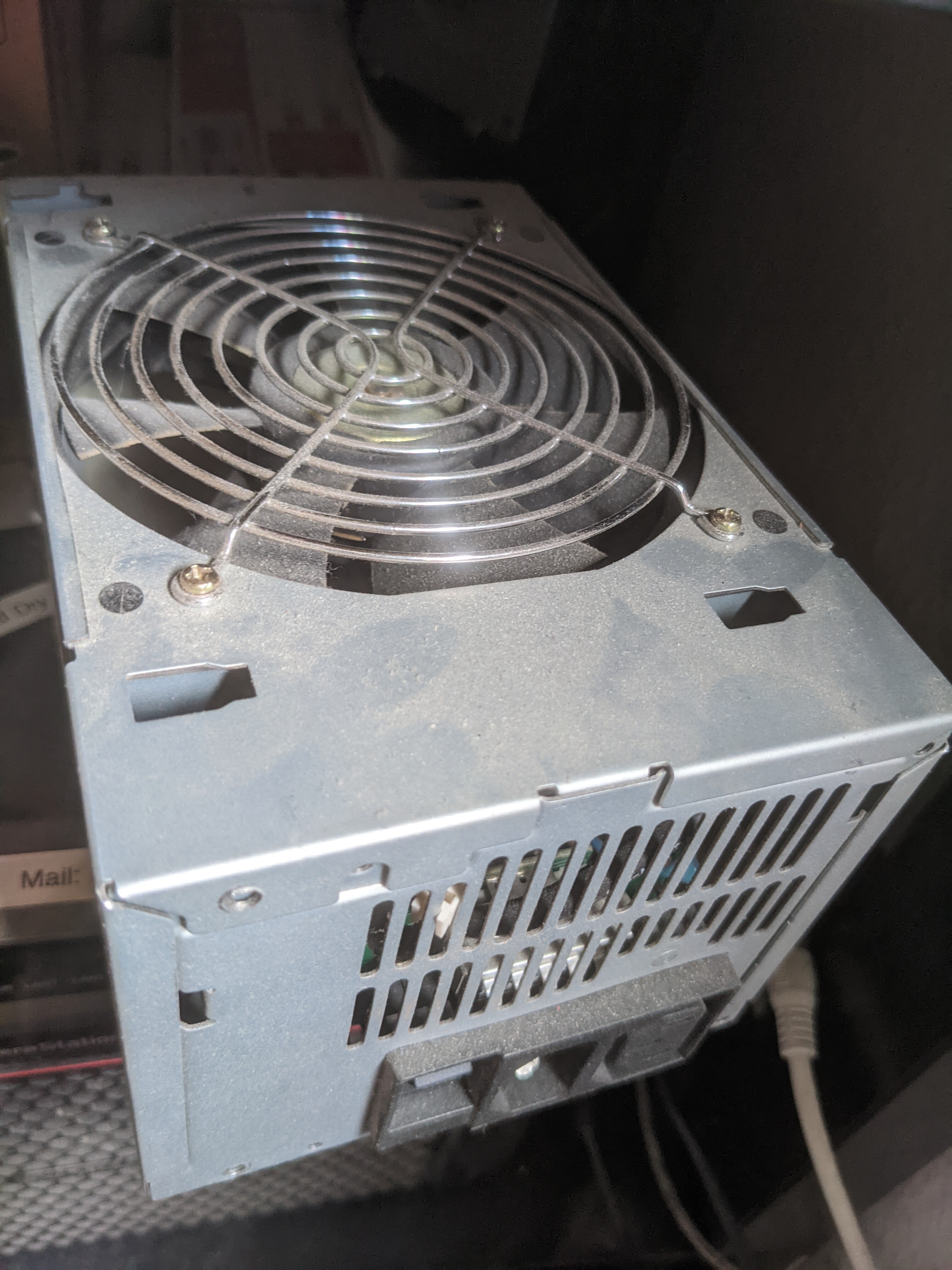

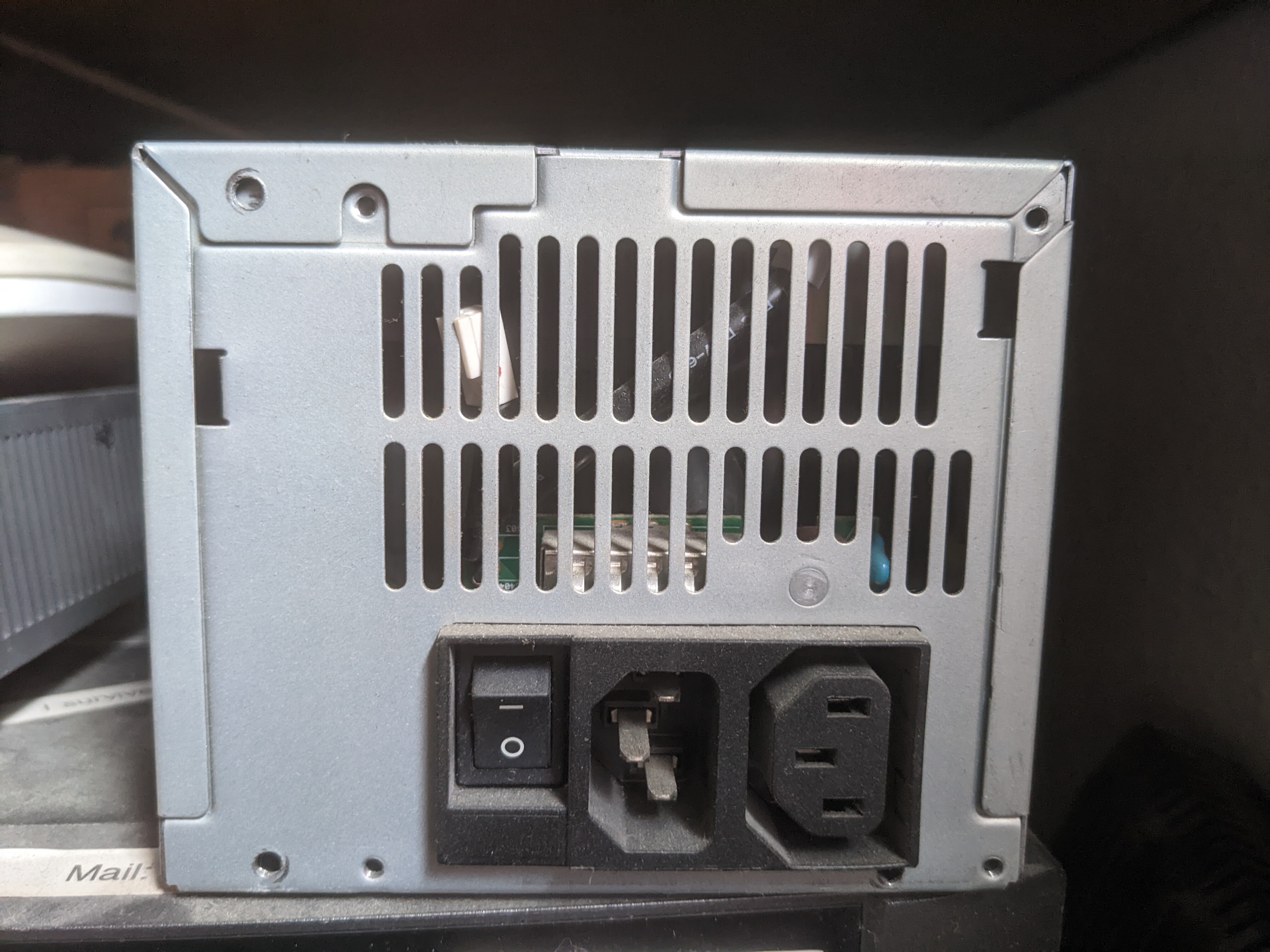

The old power supply after it died. (The unplugged fan and the missing screws do not resemble how it looked while it was in use.)
The old power supply after it died. (The unplugged fan and the missing screws do not resemble how it looked while it was in use.)
Maybe it would have lived longer if I had cooled it better. It wasn't efficient. It would have been too loud.
Maybe it would have lived longer if I had cooled it better. It wasn't efficient. It would have been too loud.

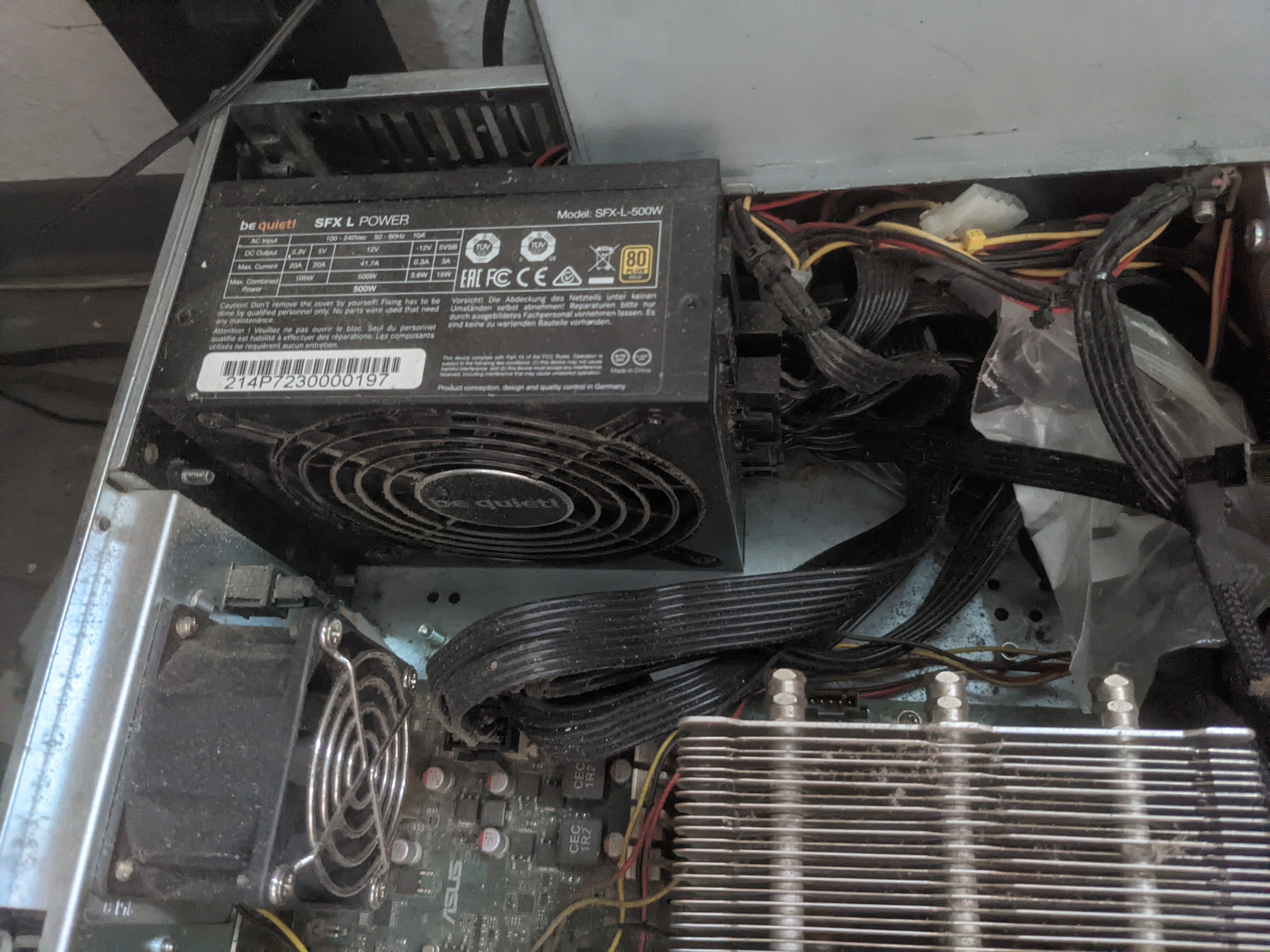

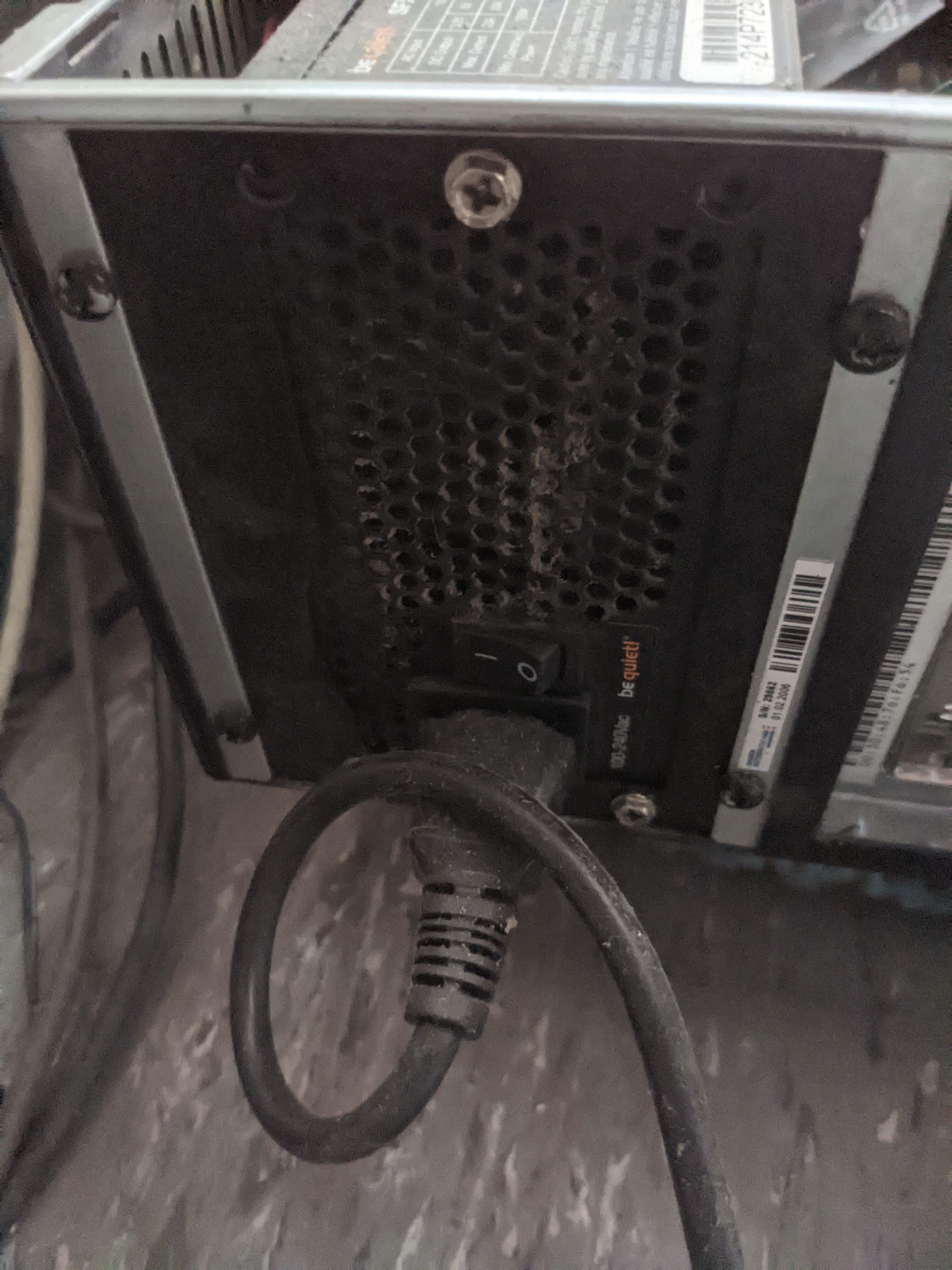

The new power supply. Fits well in height and leaves more than enough room for its modular cables (even for the ones that aren't used) and airflow.
The new power supply. Fits well in height and leaves more than enough room for its modular cables (even for the ones that aren't used) and airflow.

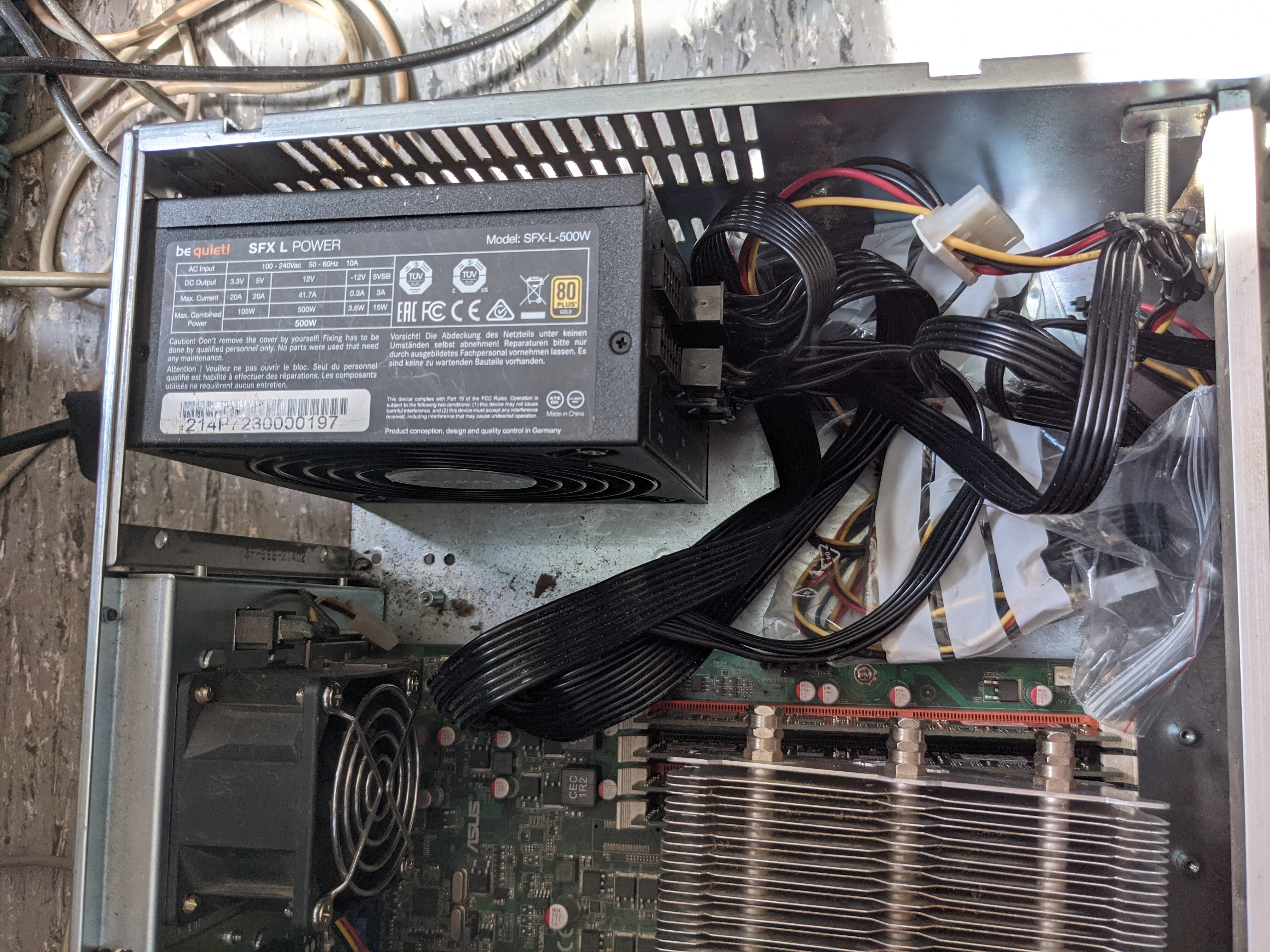

I'm happy with the adapter plate and how it turned out, even though I originally made it for a different SFX unit and the fan cutout now seems redundant. But it actually looks kind of professional. That's rare enough with me. I bet you can't tell which part I made myself. (Or is this because the photo is so bad?)
I'm happy with the adapter plate and how it turned out, even though I originally made it for a different SFX unit and the fan cutout now seems redundant. But it actually looks kind of professional. That's rare enough with me. I bet you can't tell which part I made myself. (Or is this because the photo is so bad?)
I made my own modular cables with old molex connectors for the HDD backplane. The unused cables in the plastic bag has its place at the back of the PSU.
I made my own modular cables with old molex connectors for the HDD backplane. The unused cables in the plastic bag has its place at the back of the PSU.
Comment via email

SBWG 0.10.11

It's been two months since I published a new version of SBWG (and therefore since I worked enough on it to make me feel that an increase in the version number may be justified). I hardly get around to working on it, lately. But when I do, I try to make some solid small steps towards the improvements I wish do be done to SBWG.

So, now there is a new version (0.10.11) but I haven't published it yet because before I do I want to test it a bit more when I'm not as fucking tired as I am right now. Writing this entry could actually be considered part of the testing that I still want to do. But as I said, I'm fucking tired right now. So I'll continue this entry another time.

Edit 2022-09-12: I did some tests with fake content offline and feel confident that I fixed more than I broke in this version. I'll add it to the project page soon.

Two long procrastinate areas that have been overdue to get fixed for a while now are permanent caching and parallelisation. For permanent caching, the bugs that I found are fixed. Aggressive caching with option `--cache` (`-C`) works and certain groups can be selected (excluding others) for permanent caching. In my test this speeds up everyday web site re-generations by up to 100%. But it also means the user has to be aware of the cache files that persist after SBWG is done and will be used the next time. Changes to existing entries will not take effect without removing the relevant cache files. For parallelisation, the bugs that I found and that affect the generated HTML are fixed. I still consider parallel mode to be experimental. Sometimes messages on stdout are weird or cut off. But who uses very verbose mode and looks at every message anyway? Parallelisation is functional and usable is what I mean to say. In my test on a Core i5 with 4 cores (8 threads) it speeds up everyday web site re-generation by around 380% with default settings. It depends a lot on how much of web site generation is generating thumbnails and other image sizes of file attachments or gallery images. Those aren't sped up that much because the CPU already is the bottleneck for those. HTML file generation profits more from having more parallel threads than CPU cores (or threads) running.

Comment via email

Fred - Part 2 - The Case Lid And Cooling

This entry is a reply to or continuation of the entry 'Fred - Part 1 - Modding The Quiet Into A Server Rack Case'.

In this entry I'll describe how Fred's components are air cooled.

So, after removing the fan wall and unplugging the two fans in the back of the case there was no active cooling left. That's good for reducing noise, but not enough cooling for the hard drives, the CPU and the SAS controller cards. Since the case is not mounted in a rack and nothing is placed on top of it, I decided to use the space in the case lid to place larger fans.

The CPU

My idea was to replace the CPU cooler with a larger one that just fits into the case and have a fan above it suck out its hot air (also pulling in ait from the RAM modules next to the CPU socket). I fount a heat sink from Scythe called Iori (SCIOR-1000). Mounted on the socket there would be just enough space for a 15 mm fan above it. As it turns out though, the heat sink is large enough to cool the CPU passively and the RAM doesn't need any additional cooling, too. So the fan above it is not even plugged in.

The Extension Cards

Since the HBA and the RAID card that I'm using are designed for servers with a proper airflow, they need at least some additional cooling. Their heat sinks are quite small for the amount of heat they produce. But there was enough room above them to place a fan that sucks the hot ait directly from the extension card area out of the case. I was told these cards usually don't have any problems getting extremely hot. But I rather don't want to have them do their things for hours or days streight without any active cooling. Replacing their heat sinks with larger ones would only be a sufficiant option if there was room for much much larger heat sinks.

The Hard Drives

I don't want to have have hard drives run continuesly without any active cooling, especially when they are sitting in enclosures that don't allow for any aitflow without some amount of pressure. There is just no-where for the heat to go on its own in these tight drawers. I decided for three 140 mm fans that would neatly in a row behind the hard drive compartment and backplane. Since the motherboard isn't that large, there was nothing but a few cables in that area of the case. I've mounted an aluminium bar that I had lying around and tucked two pieces of flat plastic between this bar and the bar that originally held the fan wall at the bottom. That way, the air that is pressed in from above gets directed only into the hard drive compartment where it has no way to escape without passing the hard drives.

Unfortunately the room around the hard drives is so small that quite a lot of air preassure is needed to cool them as much as I wanted to. Running the fans at full speed all the time is hardly enough to keep them at a temperature that I deem acceptable. I tried to increase the cooling effect by sealing all the edges and other tiny spaces where some air could escape without cooling the hard drives. But this didn't lead to a measurable difference. I ended up taking out two of the 16 hard drives to increase the size of the duct. I chose two drives in the centre so that there now is a large surface where the air cools the remaining drives. That lowered the temperatures of the surrounding drives a lot. The temperature of the drives at the edges was of course hardly effected. But those weren't the problem anyway.

I'll probably continue about the rest of the case mod in a followup entry.

File Attachments (12 files)

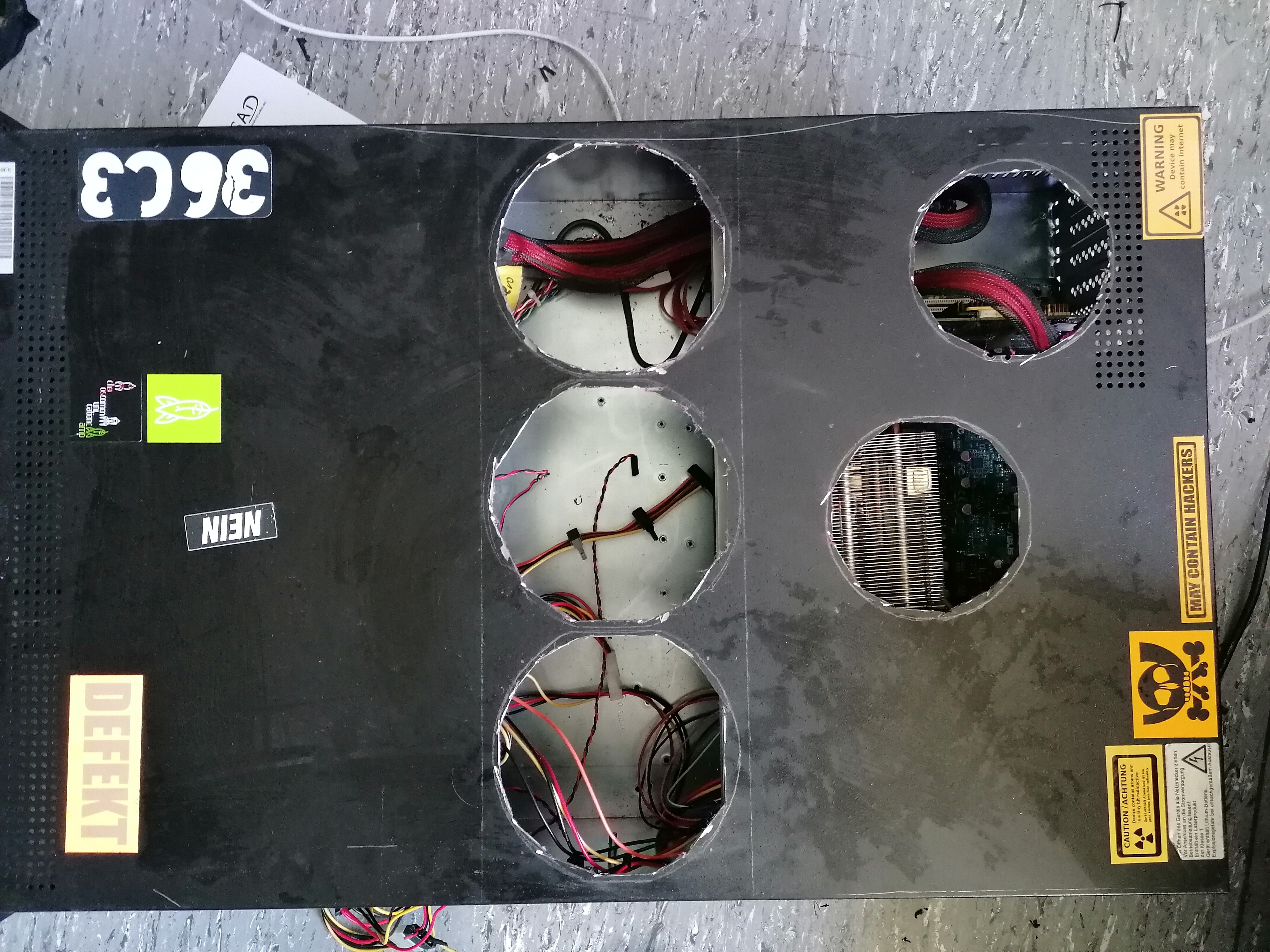

Making the holes for the fans was easier than I expected. I marked the borders with a pencil by following the outlines of the actual fans, cut the rough holes with an angle grinder with a cutting disk, then did the finishing with a rotary tool (a not Dremel).
Making the holes for the fans was easier than I expected. I marked the borders with a pencil by following the outlines of the actual fans, cut the rough holes with an angle grinder with a cutting disk, then did the finishing with a rotary tool (a not Dremel).

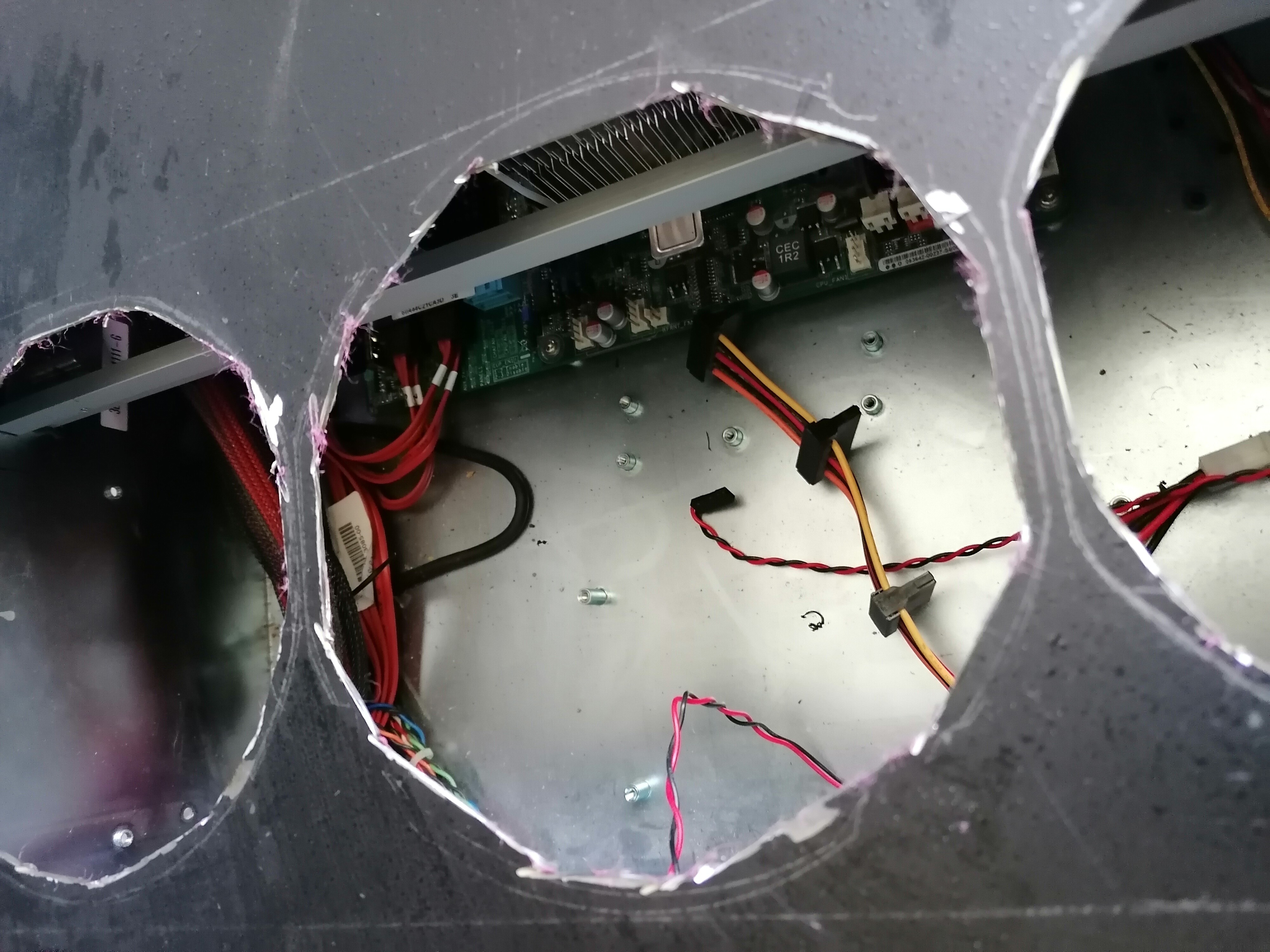

I used up several cheap grinding bits for the finishing. The remaining borders between the fas are only a few millimeters wide. But the ~2 mm thick steel holds up surprisingly well. They don't make regular home computer cases from that material.
I used up several cheap grinding bits for the finishing. The remaining borders between the fas are only a few millimeters wide. But the ~2 mm thick steel holds up surprisingly well. They don't make regular home computer cases from that material.

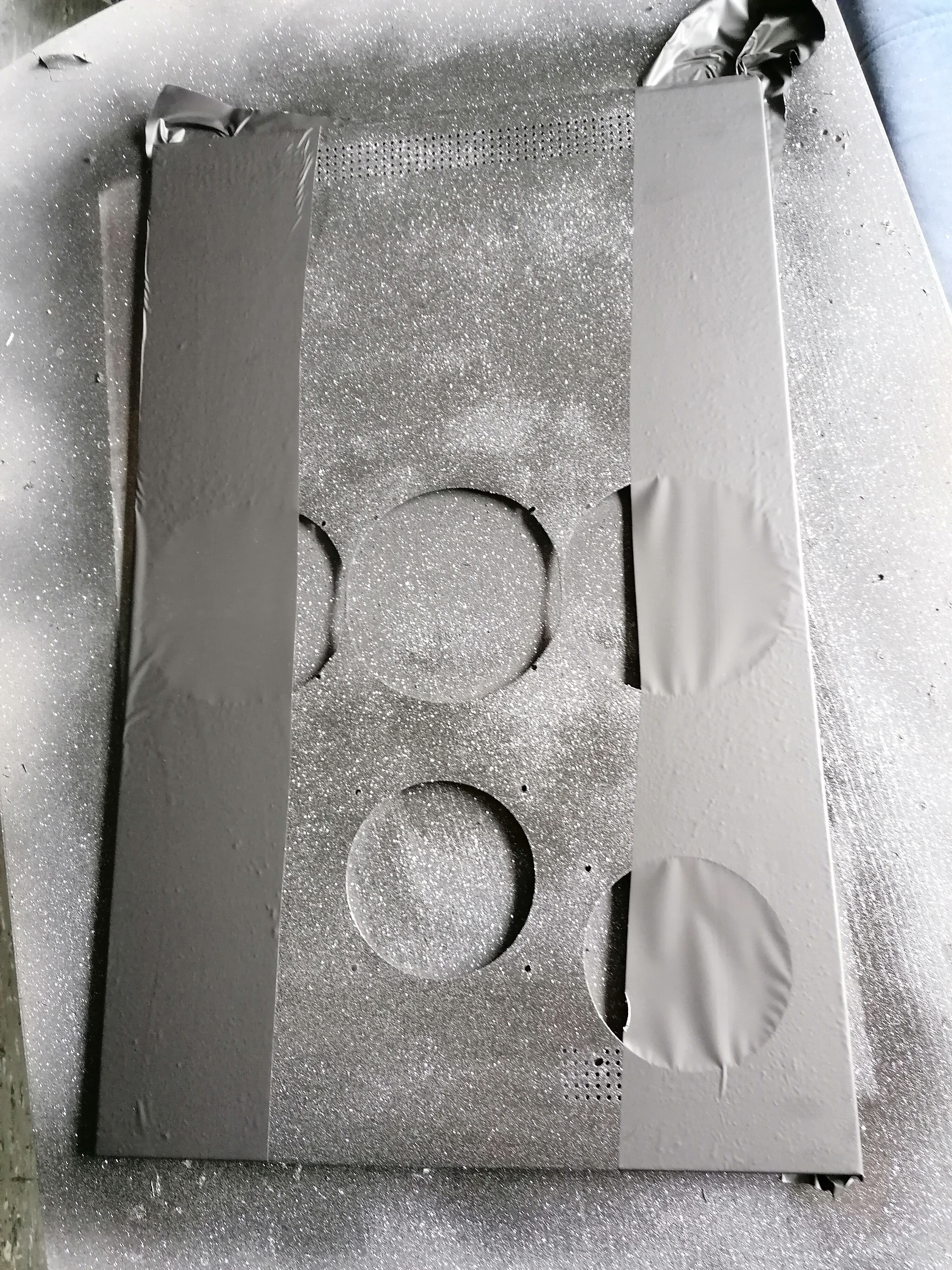

First coat: primer, second coat: matte black, thirdly added sparkly sprinkles. In the picture I started taping the sides for what comes next.
First coat: primer, second coat: matte black, thirdly added sparkly sprinkles. In the picture I started taping the sides for what comes next.

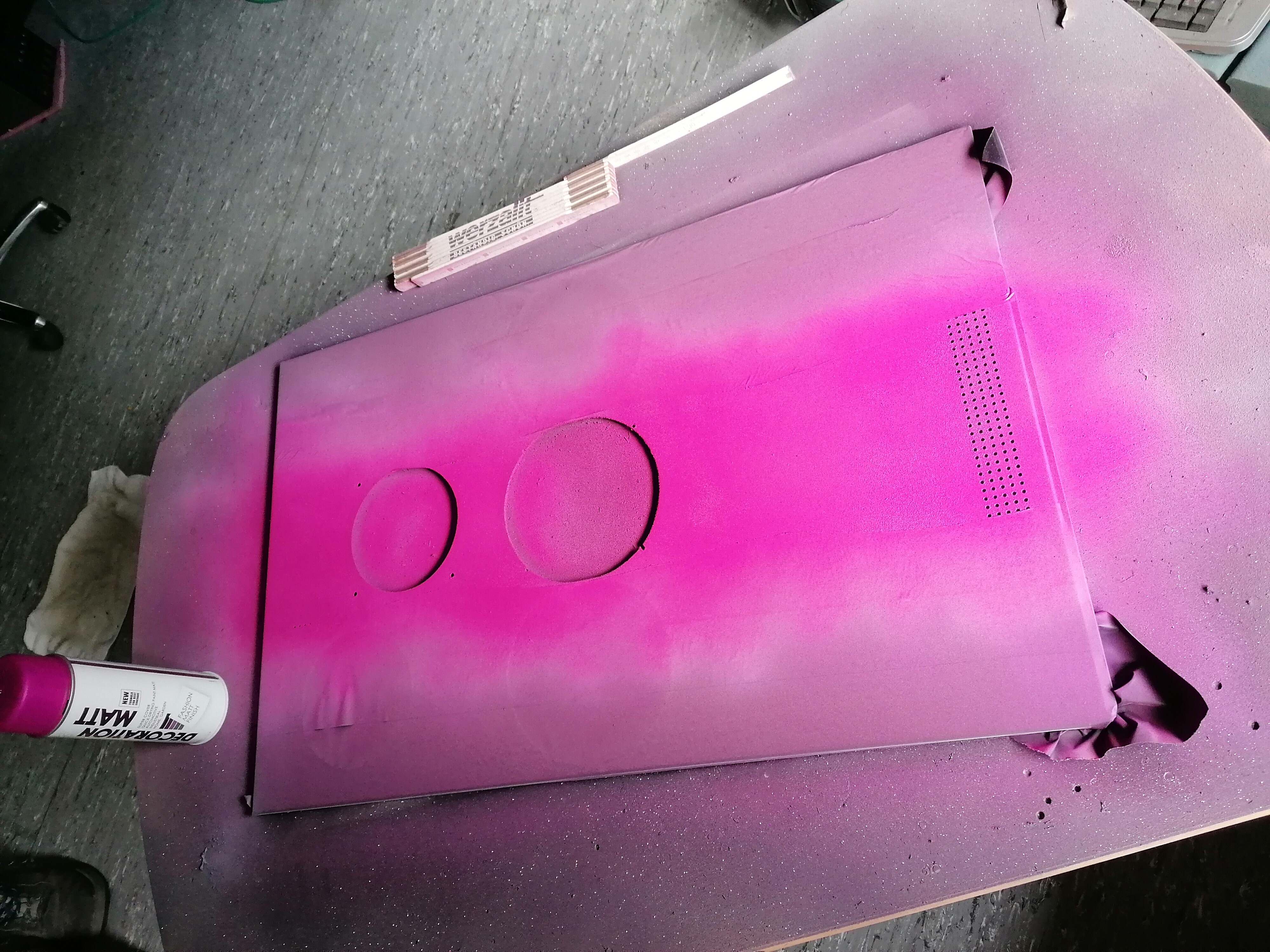

Then I painted the middle part pink. After the tape was removed I noticed the paint came off in one spot. Well, that's how it goes if you don't do it right. I can just cover this with a sticker. For now I just added a matte clearcoat.
Then I painted the middle part pink. After the tape was removed I noticed the paint came off in one spot. Well, that's how it goes if you don't do it right. I can just cover this with a sticker. For now I just added a matte clearcoat.

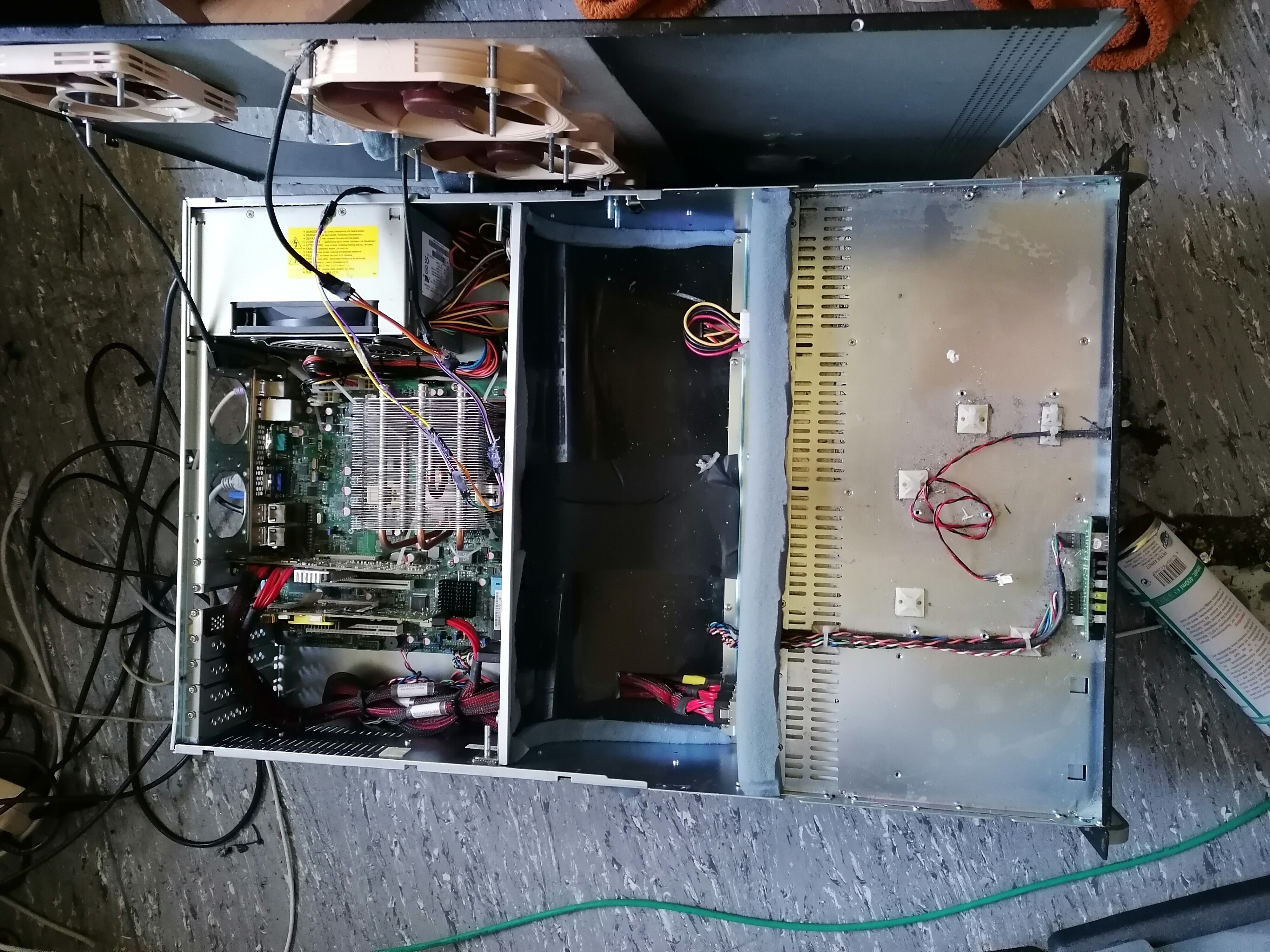

In between cooling systems. I tested the modded lid as it was in the picture but closed. It did do something and it was better than the open case with scattered fans in the next picture, but not by much.
In between cooling systems. I tested the modded lid as it was in the picture but closed. It did do something and it was better than the open case with scattered fans in the next picture, but not by much.

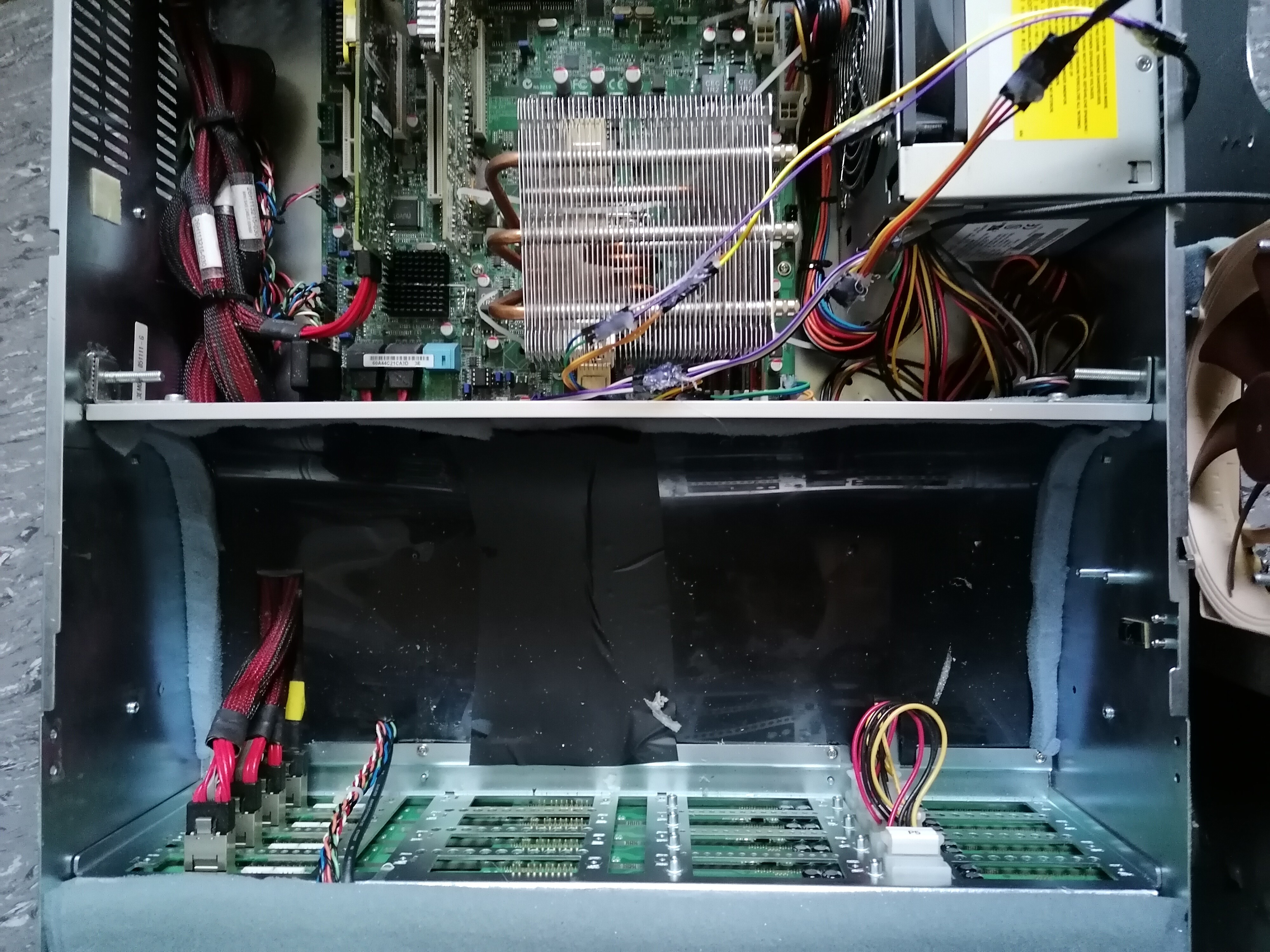

That's how it looked for a day while I used the NAS before finishing the new cooling system. Notice the large space in the middle. That will be used in the next pictures.
That's how it looked for a day while I used the NAS before finishing the new cooling system. Notice the large space in the middle. That will be used in the next pictures.

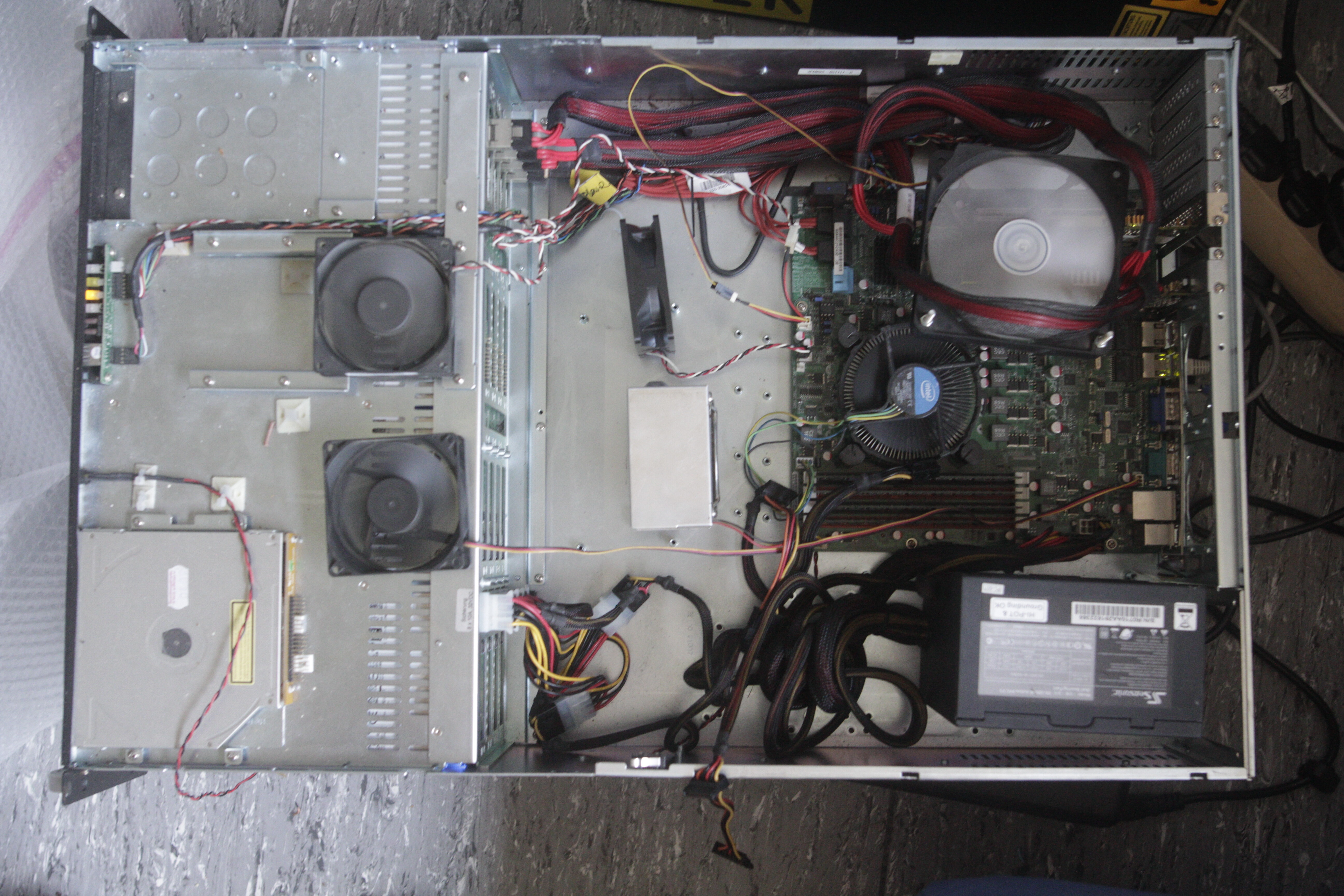

This is how the case looked inside now. (I'll write about the power supply in the next entry.)
This is how the case looked inside now. (I'll write about the power supply in the next entry.)

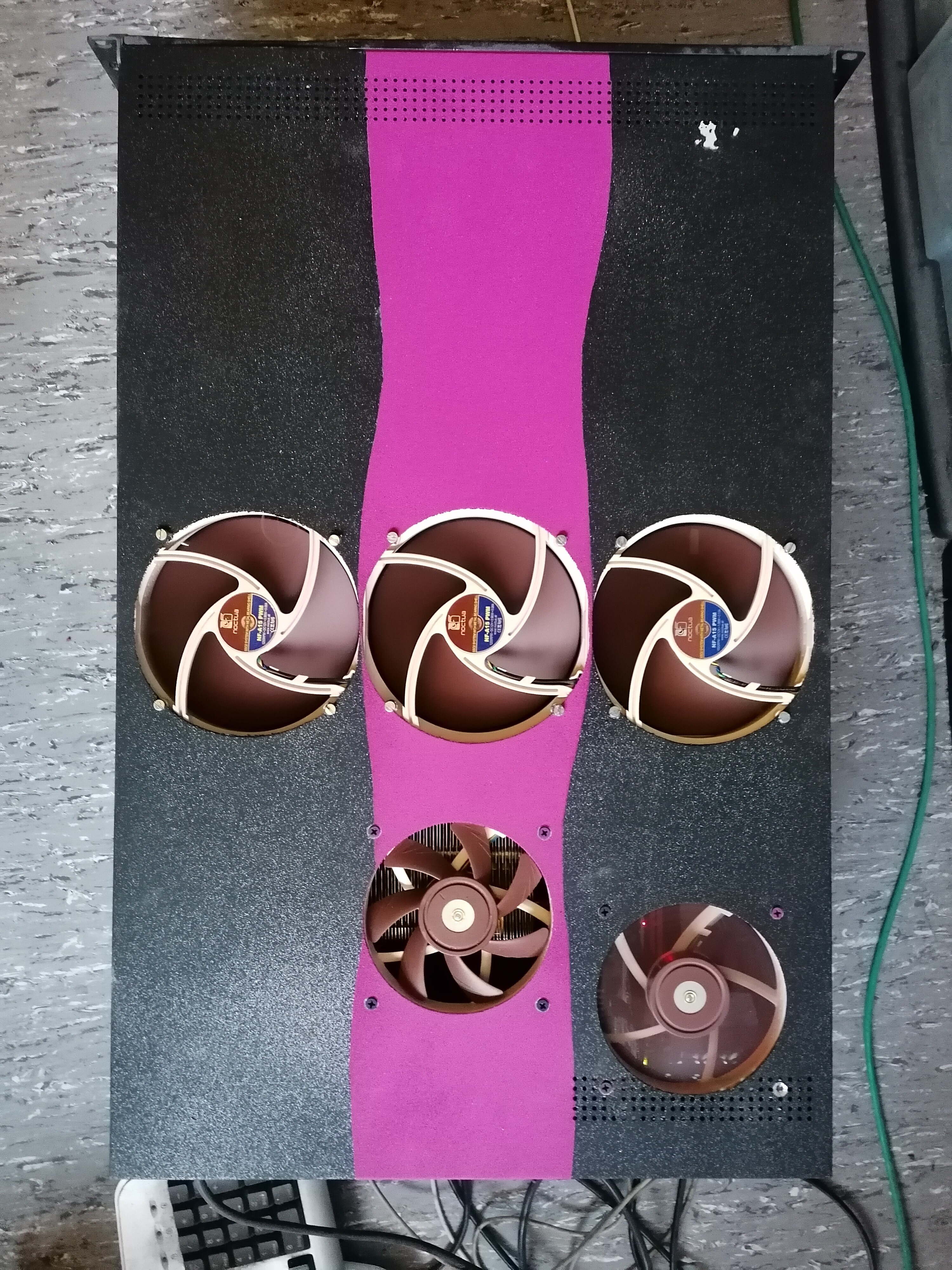

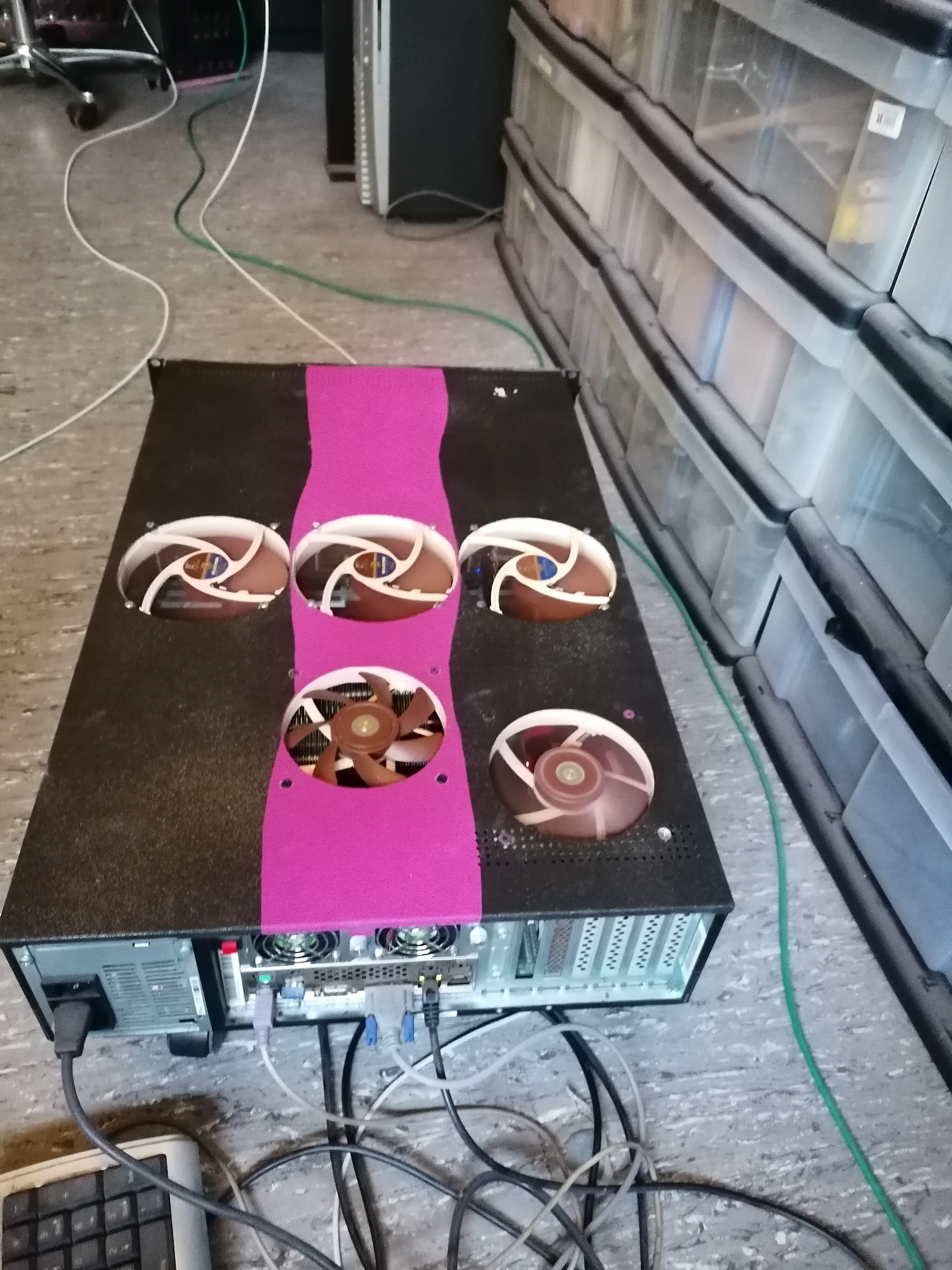

And from the outside. The fan on the bottom right cools the RAID card and the HBA. I don't know if it's cooling it enough because I don't know what the cards/processors are made to withstand. But they still ran a few years after that picture was taken. The CPU fan is off because it stays cool enough during a hours-long burn test.
And from the outside. The fan on the bottom right cools the RAID card and the HBA. I don't know if it's cooling it enough because I don't know what the cards/processors are made to withstand. But they still ran a few years after that picture was taken. The CPU fan is off because it stays cool enough during a hours-long burn test.

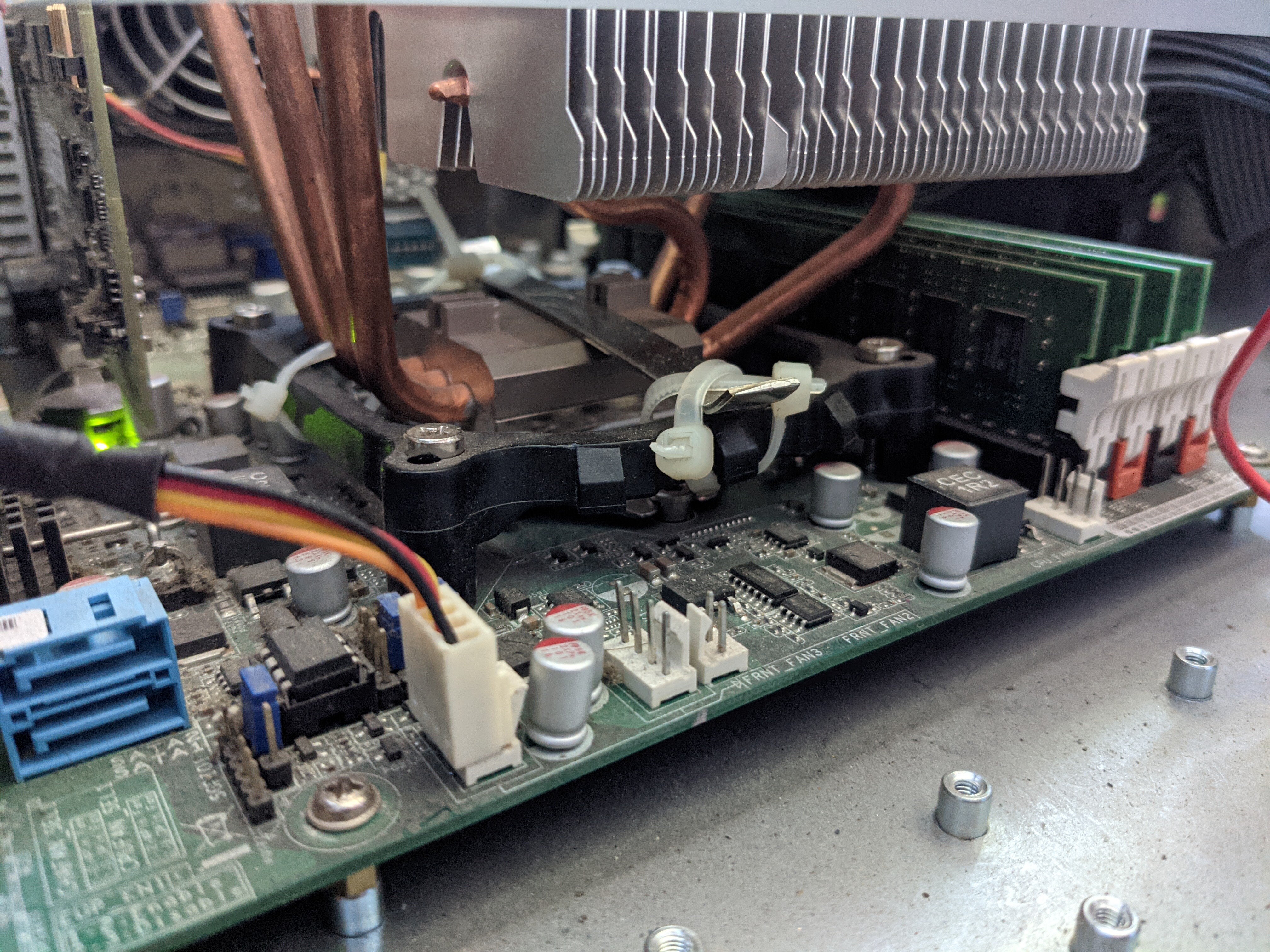

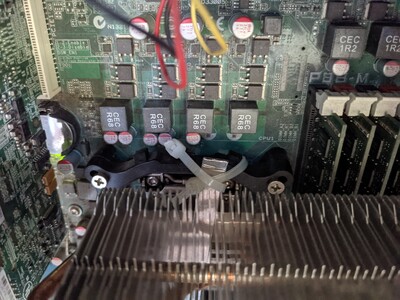

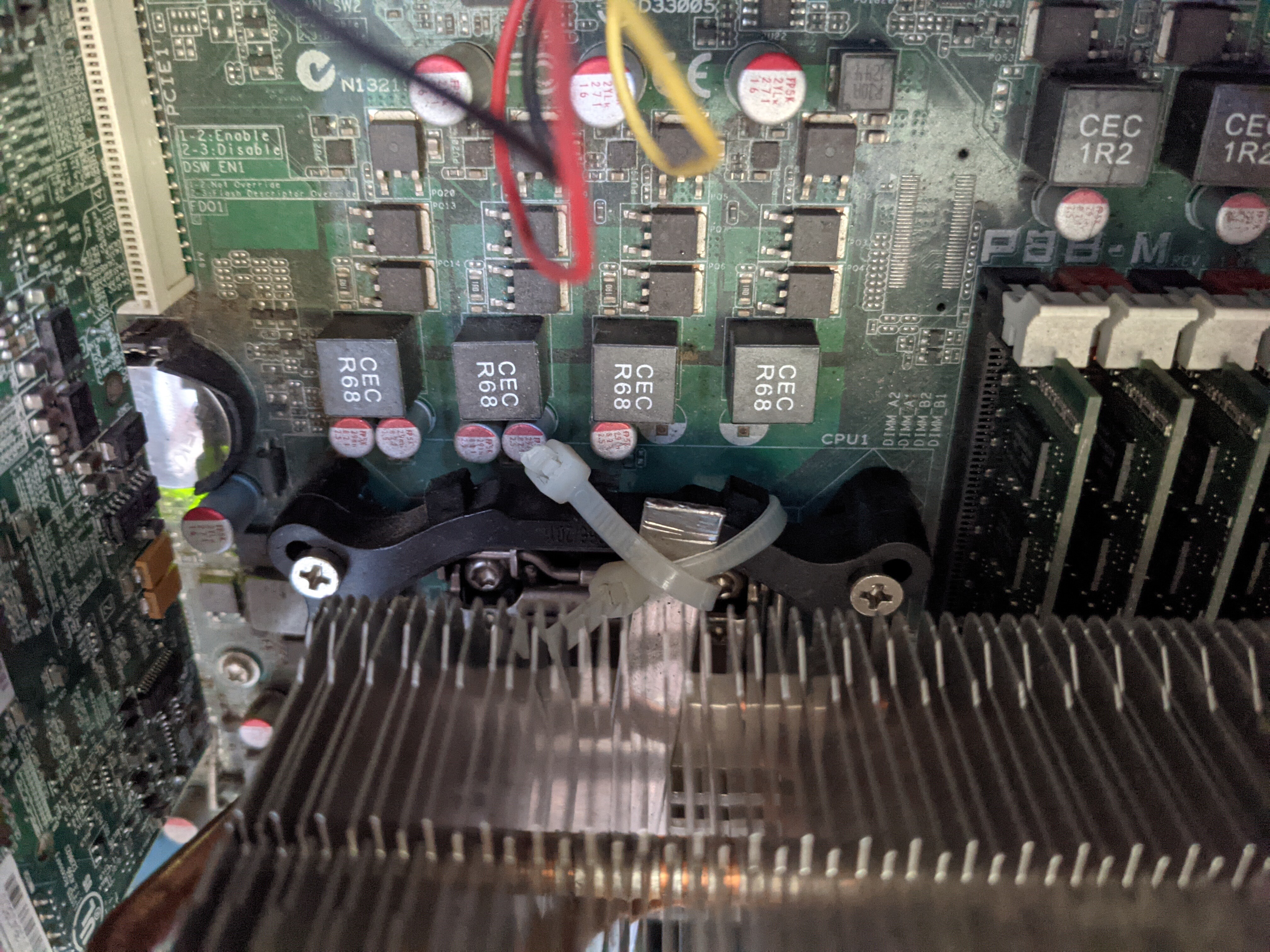

The cooler mount wasn't made for that socket. I think it was for an AMD socket. The bracket was really strong and tight and eventually broke in two. The CPU lid didn't take any damage though and I simply used a few zipties to hold the cooler in place without much preasure on the CPU. That still was enough to cool the CPU passively and the machine ran three quarters of a year that way.
The cooler mount wasn't made for that socket. I think it was for an AMD socket. The bracket was really strong and tight and eventually broke in two. The CPU lid didn't take any damage though and I simply used a few zipties to hold the cooler in place without much preasure on the CPU. That still was enough to cool the CPU passively and the machine ran three quarters of a year that way.
Eventually I made my own bracket (not in the picture) and now that is held down by zipties. It's quite sturdy.
Eventually I made my own bracket (not in the picture) and now that is held down by zipties. It's quite sturdy.
Comment via email

Fred - Part 1 - Modding The Quiet Into A Server Rack Case

Fred is an old Supermicro rack server that I got as an attempt at building a NAS that replaces all the smaller NASs that I already had. But I like to collect stuff and it's never going to be enough. So it ended up being just another extension of my home network.

Overview

It's an old 3U Supermicro server case with 16 3.5" hard drive drawers, a good but not too bulky Asus motherboard and a nice low-power Intel CPU. I kept the motherboard, CPU and 32 GB ECC RAM. It's more than enough.

I wanted to do some mods on the case though to make it more comparible to my home and my visual taste in computer cases. In short, what I did was: Switch the PSU to a quieter one, build fans into the lid for quieter drive and card cooling, painted the case, switched the CPU cooler for passive cooling, added two HBA cards and 14 8 TB hard drives (two drawers left intentionally free).

I will tell about/may document these mods in more detail in separate entries.

File Attachments (5 files)

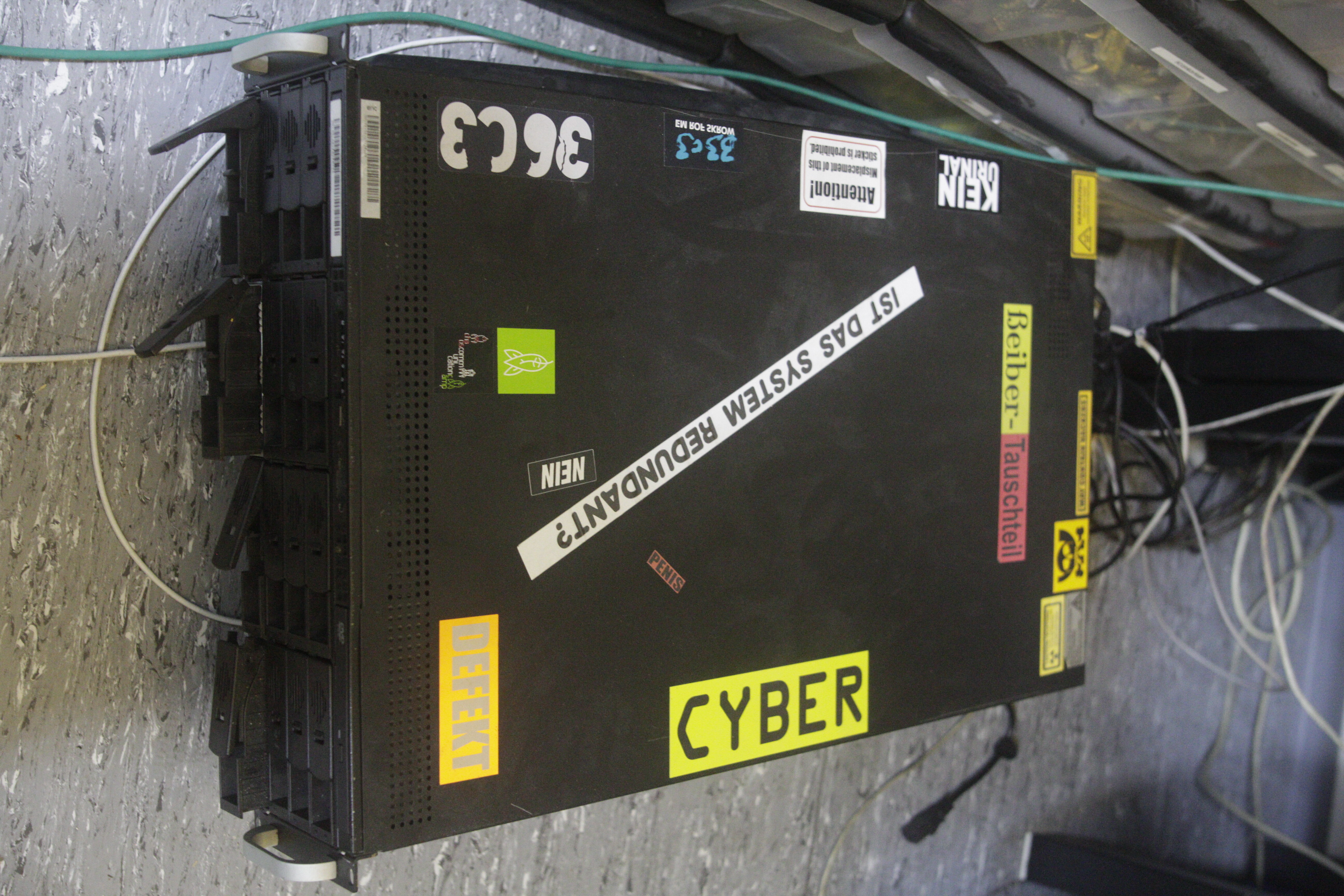

The case before I started (but not before I added some stickers)
The case before I started (but not before I added some stickers)

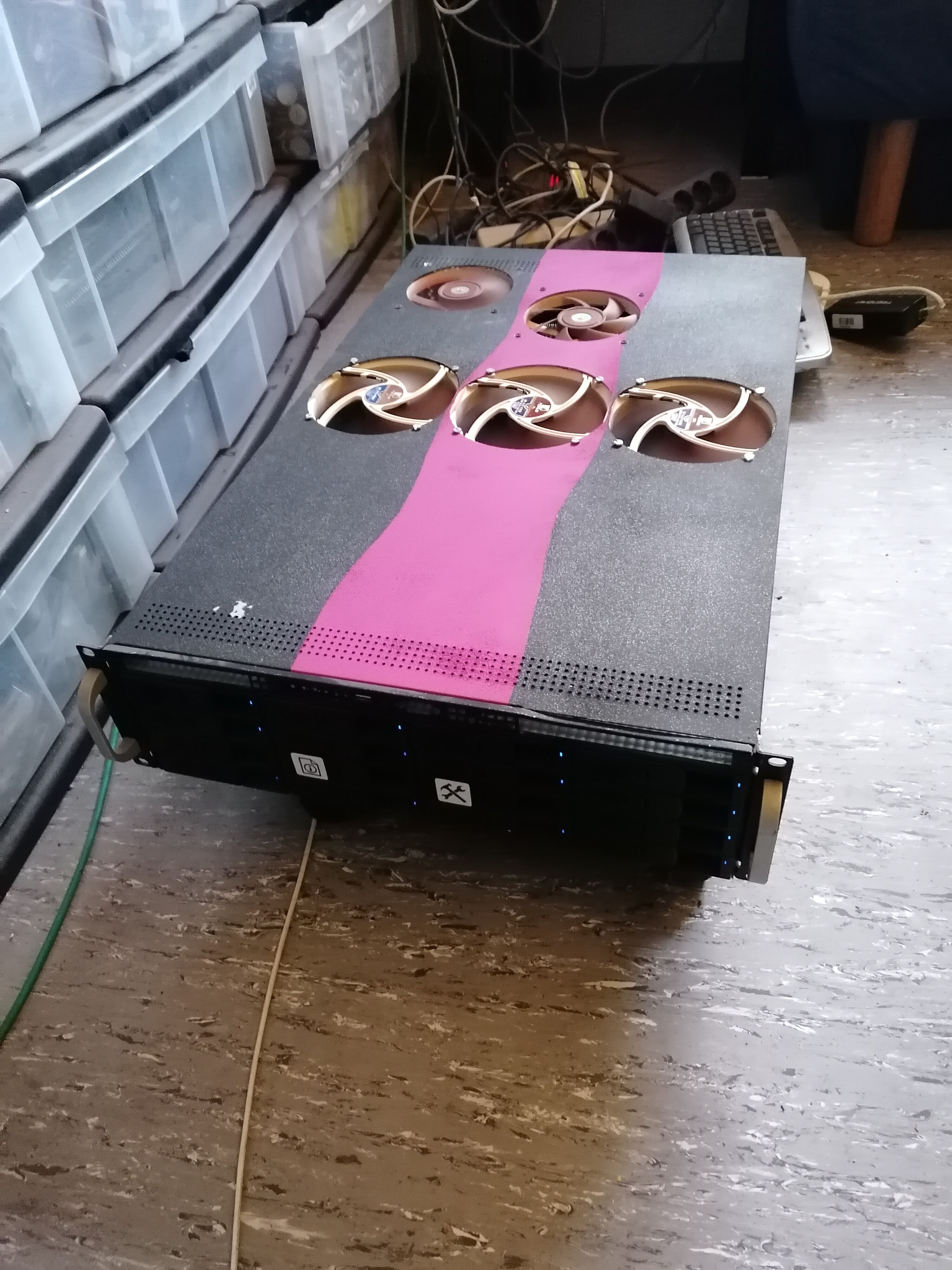

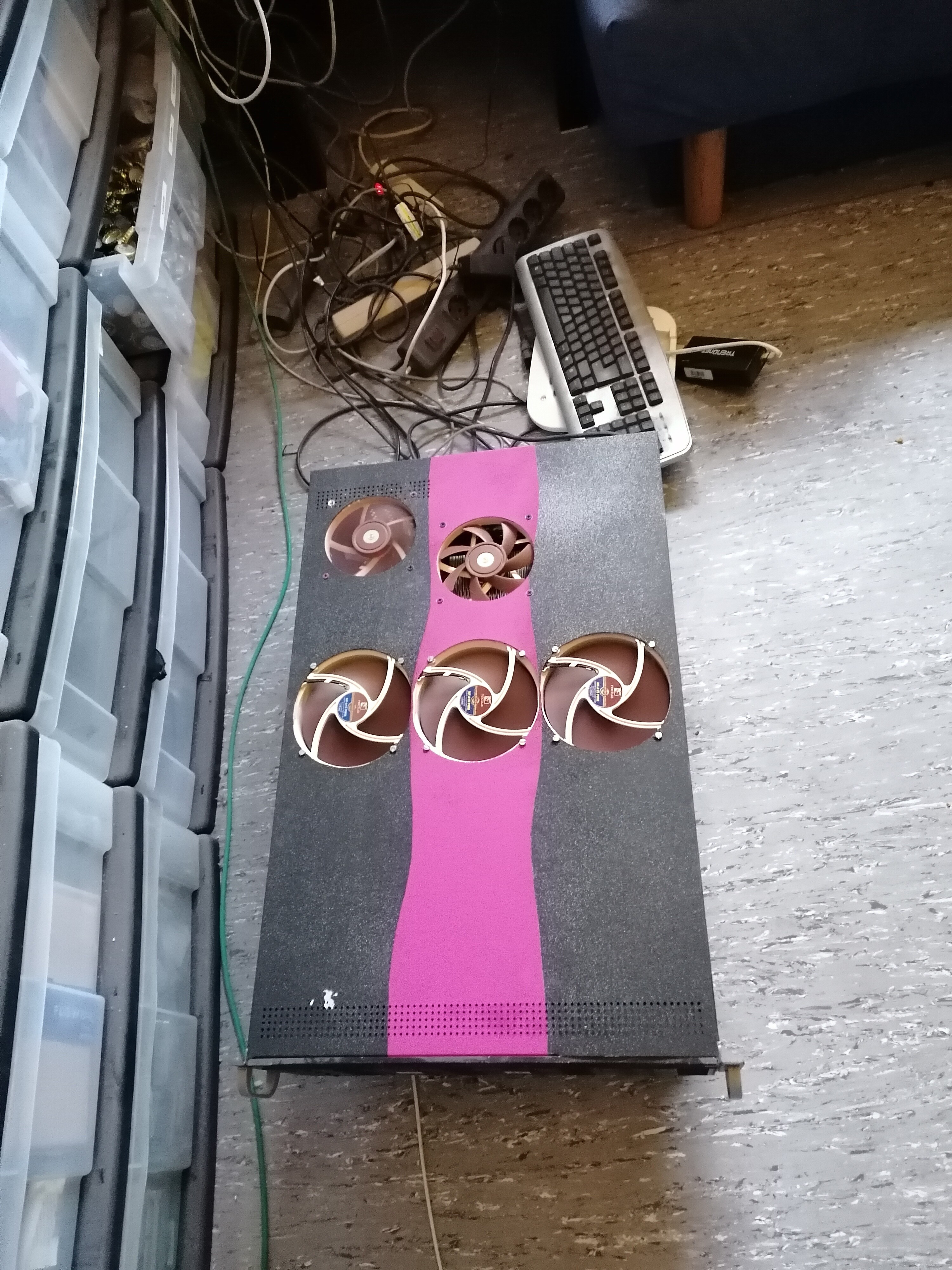

The pretty much finished case
The pretty much finished case
Comment via email

BLucid

I would like to tell the story about that time I co-founded and hosted a podcast for a few short years. But not today. This here is just to remind me.

Edit: Well, I'll just tell it real short then. I wanted to start a podcast in German language about lucid dreaming because there weren't any. But I wouldn't have done it alone, so I asked around, Zitrom joined and we recorded some episodes. We called the project BLucid because that sounded cool. He also made the intro jingle that I still like very much. Eventually I started to record episodes with others instead when Zitrom wasn't available anymore.

At some point I didn't find anybody who would join me for new episodes and so the project died. After a few years of me not having any time for that any more anyway, I decided to cancel the domain and take the site offline.

Now I'm re-publishing the podcast episodes on draft0.de.

And maybe eventually I will find somebody to co-host the podcast again. Some day. Feel free to send me a note if you'd like to be in the podcast, in German or English.

Comment via email

SBWG 0.10.10

I decided to publish a new version of SBWG. I hardly got around to editing it in the last few months. So it doesn't really contain the new things that I had for a while intended for v0.10.10. But there were a few bugs that I wanted to have fixed in the latest published version. There still are known bugs. But now there are a few less.

Well, since it doesn't really contain anything new that's relevant, I didn't have to create this entry. But I did, so I'll use it to say I also fixed the RSS feed of draft0 and the menu link of steephlog on mobile. Bugs that I didn't know I had introduced in the last update and that were very happy that I didn't test things beforehand.

The things that did change since my last SBWG update just aren't that interesting. But I'll list some here, nevertheless: Entries can now have custom notes (using the 'note:' tag; Topic tagpages now also show the author names of entries; Srickied entries are now excluded from the RSS feed because they're just used as notices at the top of tagpages and don't belong context-less in the feed (there is a better solution planned); Error reporting inside of the script now includes information on the basis of which the clean-up routine can decide how to handle things differently for different errors and stuff; SBWG now locks directories; There is now a flag that hides attachments to an individual entry that are of a specific mime type, and, you could just read the CHANGELOG file instead of this if you really are interested in these little changes.

It'll probably continue to be slow in the foreseeable future. There are a lot of ideas in my head and several bugs in the code and probably vice versa. But time… not so much.

Edit: Oh, and another thing: I started to test updates and changes that I made to SBWG live on this web site because it's more fun if something breaks every other day. I'll pretend I don't mind.

Comment via email

Looking for a 286 operating system

I got myself a 286. A small tower PC made from collected parts from here and there, a clock display and turbo button, but a motherboard that doesn't seem to have a turbo mode. An MFM hard drive, Mitsumi CD-ROM drive, two floppy drives, a VGA card, IO card, a damaged case. It looks like I could have built it from parts I found here and there. I reckon that's how it was built. It's the first working 286 that I had since I so stupidly through out my IBM PS/2 Model 30. Well, it wasn't that stupid at the time. It was a conscious decision. But anyway. The only other time I had a 286 board was when somebody gifted me their old PC because it was both worthless and broken. The CMOS battery had leaked and I didn't know enough about electronics to make it work, had nobody to ask and internet wasn't really a thing back then.

I had been looking for a specific model before: A Peacock 286 desktop. But Not only didn't I find one for sale so far, I'm pretty sure it would cost more than I'd be willing to pay for a vintage PC just so I could own the same PC model that was the first computer I ever used (for homw work in first grade). The first computer I had contact with was an Olympia People. I didn't even look for one of these because it would be a serious collector's piece and be respectively priced.

So I got just any working 286 PC; just to fill the gap in what I therefore should now start to call my collection of vintage hardware. It just happened to be one with a working MFM hard disk. As if I didn't already have enough unfinished and unstarted projects now I even payed money to buy me another one. Because now I have to do something with this machine, obviously. I bought it weeks ago and it's getting bored.

I thought about what OS I might want it to run. MS-DOS would be the obvious choice. Too obvious for my taste. CP/M after that. But that's too similar. I want something different. But I don't even know what other systems exist that run on a 286. Linux should be out. (Although I haven't yet looked if somebody has made some part of the kernal work on a 286. I doubt it though. No extended mode, no multitasking.) IBM AIX wasn't available for the 286 models either. Are there other Unix clones or versions that run on a 286? Of course there are. I just don't know them. Prologue comes to mind. And Xenix. What others are there? Which one should I try? I could test MikeOS on it.
